Wire Rod
Low carbon steel wire rod (soft wire):
The carbon content of this type of wire rod is less than 0.25%. Due to the low carbon content, it has excellent plasticity. In practical applications, it is mostly used for the production of stirrups in the construction field and as a raw material for cold-drawn steel wire. For example, in the reinforced concrete structure of ordinary residential buildings, stirrups made of low carbon steel wire rods can effectively enhance the stability of the concrete structure.
Common low-carbon wire rods include SAE1008 wire rods, SAE1010 wire rods, SAE1015 wire rods, Q195 wire rods, Q215 wire rods, etc.
ADVANTAGES
The following are the characteristics of SAE1008 wire rods:
- SAE1008 wire rods have good toughness and processing performance, but relatively low strength.
- They are generally not directly used in the production of steel strands.
- They are mainly used for cold processing to produce various parts, such as wheel hubs and chassis parts in automobile manufacturing; standard parts such as bolts, nuts, and washers in machinery manufacturing; hardware such as door and window hinges and latches in the construction industry; furniture metal accessories and bicycle parts in daily necessities.
- It is a steel product with specific chemical composition and properties.
USE
Application fields:
- Automobile industry: used to manufacture various parts of automobiles, such as wheel hubs, chassis parts, engine parts, etc.
- Machinery manufacturing: widely used in the manufacture of various mechanical parts, such as bolts, nuts, washers and other standard parts, as well as some structural parts that do not require particularly high strength and toughness.
- Construction industry: can be used to make some hardware for construction, such as door and window hinges, latches, etc.
- Other fields: also used to manufacture some daily necessities, such as metal accessories for furniture, bicycle parts, etc.
SPECIFICATIONS
1. Material and specifications
Common specifications refer to its diameter size, usually 5.5mm, 6.0mm, 6.5mm, 7.0mm, 8.0mm, 9.0mm, 10.0mm, 12.0mm, etc.
1)Range of dimensions ( diameter : 5.5 - 16mm )
TOLERANCE ( EN10017 - ISO 16124 ) | ||
Diameter(mm) | Tollerance on | |
Diameter(mm) | Ovality | |
5.5 - 6 -6.5 -7.6 - 8 -8.7 - 9 | ±0.30 | 0.48 |
10 - 11 - 12 - 13 - 14 - 15 | ±0.40 | 0.64 |
16 | ±0.50 | 0.80 |
2)Chemical composition (unit: %)
Grade | C | Mn | P | S | Si | Cr | Ni | Cu |
SAE 1008 | 0.05 ~ 0.10 | 0.30 ~ 0.50 | ≤ 0.035 | 0.10 ~ 0.20 | ≤ 0.20 | ≤ 0.25 | ≤ 0.20 |
2.Performance characteristics
Grade | Tensile Strength, MPa | Reduction of area, Z / % | Yield Strength, MPa | Elongation (guage length is 50mm), % |
SAE 1008 | 370 ~ 450 | ≥ 30 | 270 ~ 340 | ≥ 26 |
(Due to its low carbon characteristics, it has good cold processing performance and is suitable for various cold processing processes such as drawing, cold heading, stamping, etc., and can be made into parts of various shapes).
Note: The actual mechanical properties may vary due to different production processes and raw materials, and are subject to actual conditions.

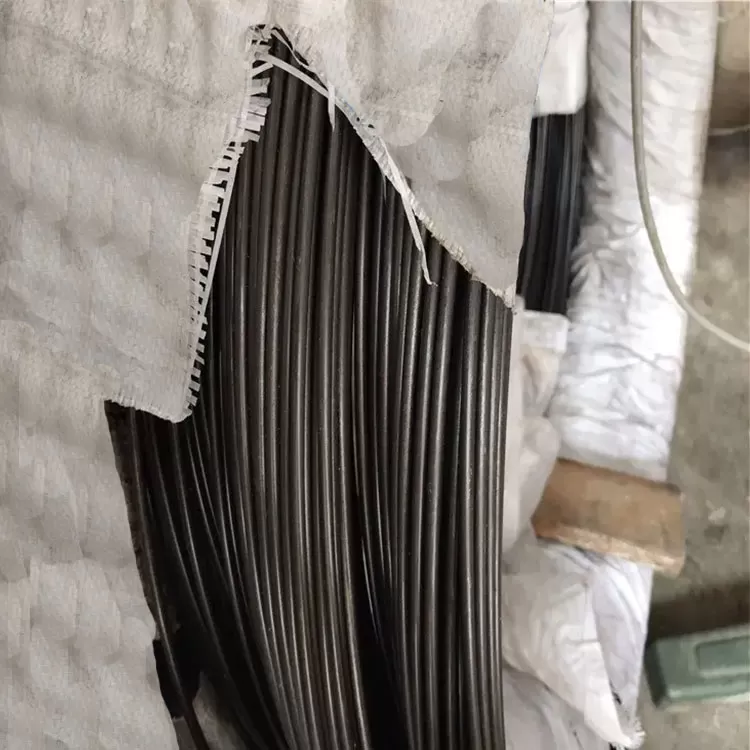

PACKAGE
We support customized packaging.
