Prestressed Material

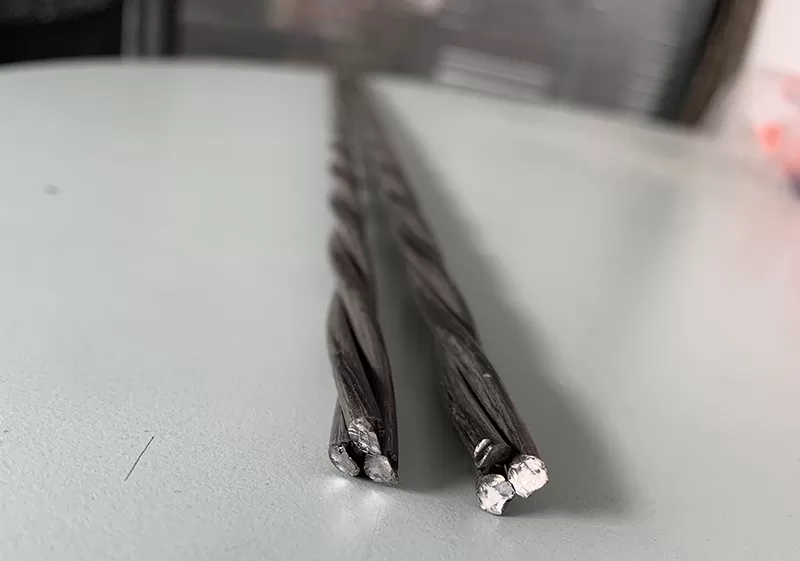

Y1860S3 steel strand is 3-wire steel strand with tensile strength 1860Mpa , and we can provide in accordance with standards EN10138, ASTM A910, JIS3536,IRAM-IAS U500-07,
ABNT NBR7483:2008,IS:6006,BS5896,GB/T5224
ADVANTAGES
-Primary advantages
Y1860S3 steel strand
Very high tensile strength , very high yield strength , good elongation performance , and a very low relaxation.
-Why should I buy this Y1860S3 steel strand ?
We have full range of specifications available , package also can be customized.
-What makes this product different to other factory's Y1960S3 steel strand?
Good straightness
USE
-Where can our Y1860S3 steel strand be used?
Pretensioned and posttensioned prestressed concrete construction.
Concrete products manufacture, such as concrete railway sleeper , precast beam , concrete pole/ concrete colum
SPECIFICATIONS
| Structure | Standard | Nominal diameter | Wire Diameter | Tolerance on Strand Diameter | Nominal Area of Section | Weight of strand | Tensile Strength, Rm | Minimum Breaking load,Fm | 0,2% proof force e, Fp0.2 | 0,1% proof force , Fp0.1 | Minimum Load at 1 % Extension, Fp1.0 | Elongation Lo=500mm, Agt | Curvative of strand | Lay Length |
| mm | mm | mm | (mm2) | (kg/1000m) | (N/mm2) | KN | KN | % | mm | mm | ||||
| 1X2 | GB/T5224:2014 | 5.00 | 2.50 | +0.15,-0.05 | 9.82 | 77.1 | 1860 | 18.3 | 16.5 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | GB/T5224:2014 | 5.80 | 2.90 | +0.15,-0.05 | 13.20 | 104.0 | 1860 | 24.6 | 22.1 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | GB/T5224:2014 | 8.00 | 4.00 | +0.25,-0.10 | 25.10 | 197.0 | I860 | 46.7 | 42.0 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | GB/T5224:2014 | 10.00 | 5.00 | +0.25,-0.10 | 39.30 | 309.0 | 1860 | 73.1 | 65.8 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | GB/T5224:2014 | 12.00 | 6.00 | +0.25,-0.10 | 56.50 | 444.0 | 1860 | 105.0 | 94.5 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 6.20 | 2.90 | +0.15,-0.05 | 19.80 | 155.0 | 1860 | 36.8 | 33.1 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 6.50 | 3.00 | +0.15,-0.05 | 21.20 | 166.0 | 1860 | 39.4 | 35.5 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 8.60 | 4.00 | +0.20.-0.10 | 37.70 | 296.0 | I860 | 70.1 | 63.I | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 8. 74 | 4.05 | +0.20.-0.10 | 38.60 | 303.0 | 1860 | 71.8 | 64.6 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 10.80 | 5.00 | +0.20.-0.10 | 58.90 | 462.0 | 1860 | 110.0 | 99.0 | 3.5 | 25mm | (12-16)d | ||
| 1X3 | GB/T5224:2014 | 12. 90 | 6.00 | +0.20.-0.10 | 84.80 | 666.0 | 1860 | 158.0 | 142.0 | 3.5 | 25mm | (12-16)d | ||
| 1X3I | GB/T5224:2014 | 8. 74 | 4.05 | +0.20.-0.10 | 38.60 | 303.0 | 1860 | 71.8 | 64.6 | 3.5 | 25mm | (12-16)d | ||
| 1X2 | pr EN10138 | 4.5 | 2.25 | 7.95 | 62.1 | 1860 | 14.8 | 13.0 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 4.85 | 2.25 | 11.90 | 92.9 | 1860 | 22.1 | 19.4 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 6.5 | 3.00 | 21.20 | 165.6 | 1860 | 39.4 | 34.7 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 6.9 | 3.25 | 23.40 | 182.8 | 1860 | 43.5 | 38.3 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 7.5 | 3.50 | 29.00 | 226.5 | 1860 | 53.9 | 47.4 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 8.6 | 4.00 | 37.40 | 292.1 | 1860 | 69.6 | 61.2 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 6.3 | 2.90 | 19.80 | 154.6 | 1920 | 38.0 | 33.4 | 3.5 | 25mm | (14-22)d | |||
| 1X3 | pr EN10138 | 6.5 | 3.00 | 21.20 | 165.6 | 1920 | 40.7 | 35.8 | 3.5 | 25mm | (14-22)d | |||
| 1X2 | ASTM A910 | 5.8 | 2.9 | +0.66.-0.15 | 13.20 | 104.0 | 1860 | 24.0 | 21.6 | 3.5 | (12-16)d | |||
| 1X3 | ASTM A910 | 4.8 | 2.25 | +0.66.-0.15 | 12.00 | 94.2 | 1860 | 22.8 | 20.5 | 3.5 | (12-16)d | |||
| 1X3 | ASTM A910 | 5.2 | 2.40 | +0.66.-0.15 | 13.60 | 107.0 | 1860 | 25.2 | 22.7 | 3.5 | (12-16)d | |||
| 1X3 | ASTM A910 | 6.2 | 2.90 | +0.66.-0.15 | 19.80 | 155.0 | 1860 | 37.2 | 33.5 | 3.5 | (12-16)d | |||
| 1X3 | ASTM A910 | 6.5 | 3.00 | +0.66.-0.15 | 21.30 | 167.0 | 1860 | 39.6 | 36.0 | 3.5 | (12-16)d | |||
| 1X3 | ASTM A910 | 7.5 | 3.50 | +0.66.-0.15 | 29.00 | 228.0 | 1860 | 54.0 | 45.0 | 3.5 | (12-16)d | |||
| 1X3 | ASTM A910 | 8.6 | 4.00 | +0.66.-0.15 | 37.40 | 298.4 | 1860 | 69.7 | 62.7 | 3.5 | (12-16)d | |||
| 1X2 | JIS3536 | 5.8 | 2.9 | +0.03.-0.03 | 13.21 | 104.0 | 1860 | 25.5 | 22.6 | (12-16)d | ||||
| 1X3 | JIS3536 | 6.2 | 2.9 | +0.03.-0.03 | 19.82 | 156.0 | 1860 | 38.2 | 33.8 | (12-16)d |

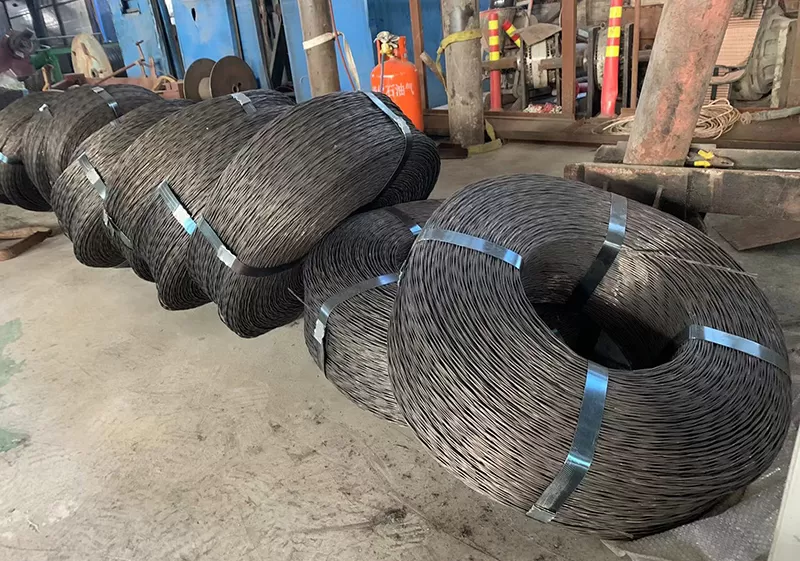

PACKAGE
As per clients’ requirement

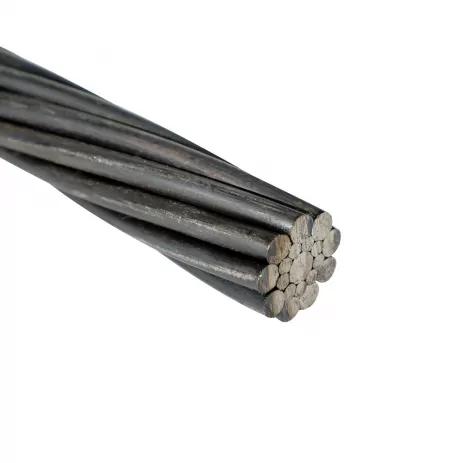

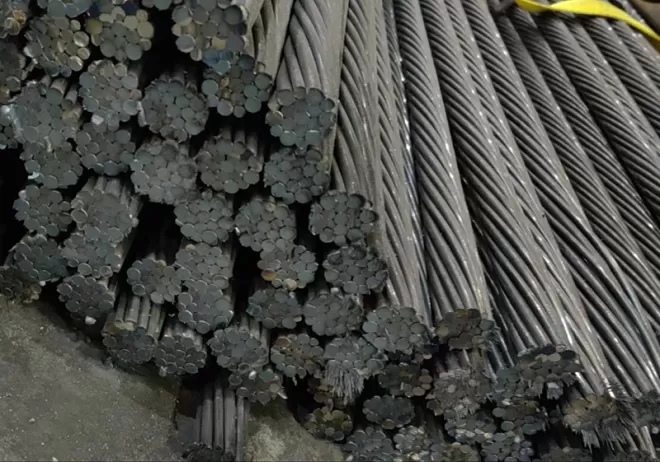

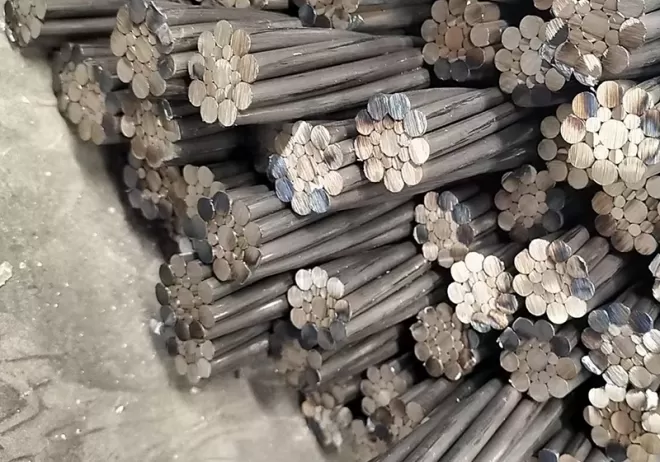

RELATED PRODUCTS
