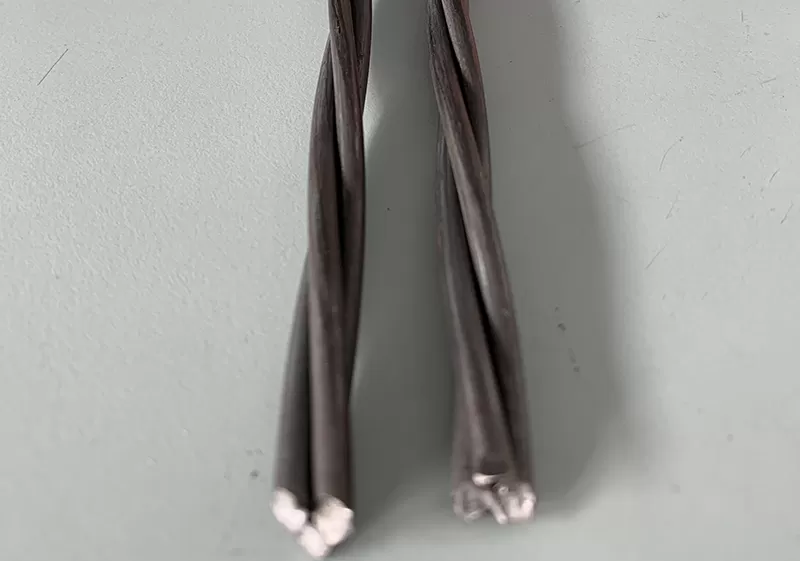

Three-Wire PC Strand

3 Wire PC Strand is produced by us strictly in according with Japanese industrial Standard JIS G3536 , this is steel strand for prestressed concrete. We have specifications SWPR2L - 2.9 mm (2-wire strand ) and SWPD 3L - 2.9 mm ( 3-wire strand ) available.

Inquire Now

ADVANTAGES

-Primary advantages

2-wire strands and 3-wire strands express individual wire diameters in the standard . We use high quality of wire - drawing mould and control individual wire diameter within very narrow tolerance range.

-Why should I buy this and 3- wire pc strand ?

2-wire strands and 3-wire strands is manufactured using the wire rods specified in JIS G3502, the wire rods have been cold worked after processing with patenting.

The 2-wire strands and 3-wire strands is processed with bluing in the final process for the purpose of relieving residual strain.

The 2-wire strands and 3-wire strands is free from joints.

When the 2-wire strands and 3-wire strands is cut without binding , it is strand and unraveled

-What makes this product different to other factory's 2-wire strands and 3-wire strands?

We have full specifications of 2-wire strands and 3-wire strands available.

Package could be customized.

USE

-Where can our

-Where can our 2- and 3- wire pc strand be used?

Pretensioned and posttensioned prestressed concrete construction.

Concrete products manufacture, such as concrete railway sleeper , precast beam , concrete pole/ concrete colum

SPECIFICATIONS

Structure	Standard	Nominal diameter	Wire Diameter	Tolerance on Strand Diameter	Nominal Area of Section	Weight of strand	Tensile Strength, Rm	Minimum Breaking load,Fm	0,2% proof force e, Fp0.2	Lay Length	Relaxation Value
Structure	Standard	mm	mm	mm	(mm2)	(kg/1000m)	(N/mm2)	KN	KN	mm	%
1X2	JIS3536-SWPR2L	5.8	2.9	+0.03.-0.03	13.21	104.0	1860	25.5	22.6	(12-16)d	2.5 Max
1X3	JIS3536-SWPD3L	6.2	2.9	+0.03.-0.03	19.82	156.0	1860	38.2	33.8	(12-16)d	2.5 Max

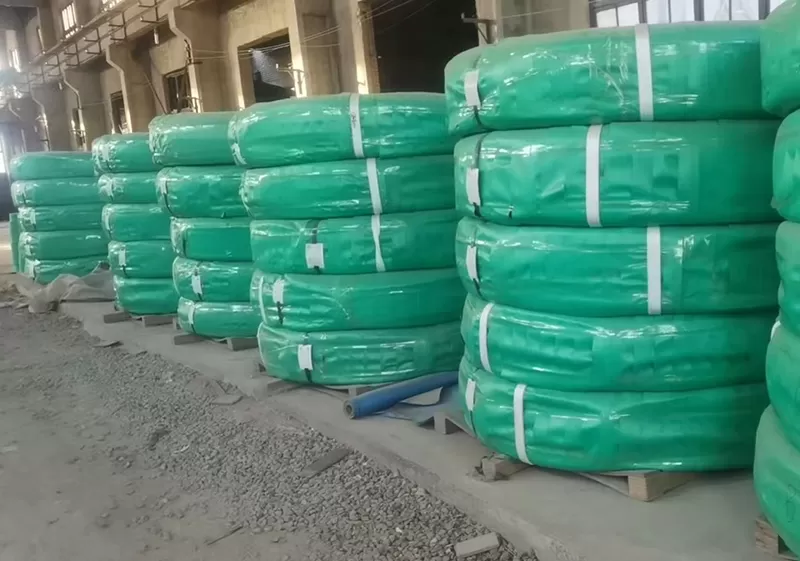

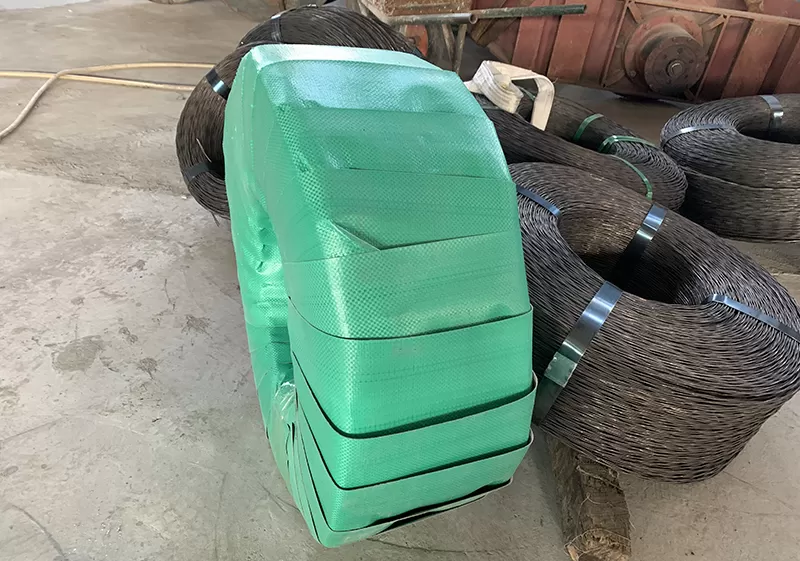

PACKAGE

PACKAGES:

As per clients’ requirements.
