Prestressed Anchor

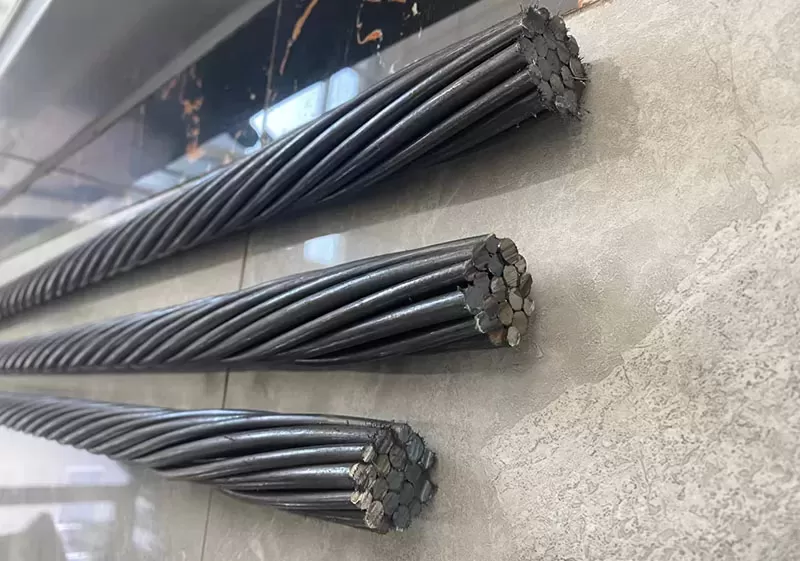

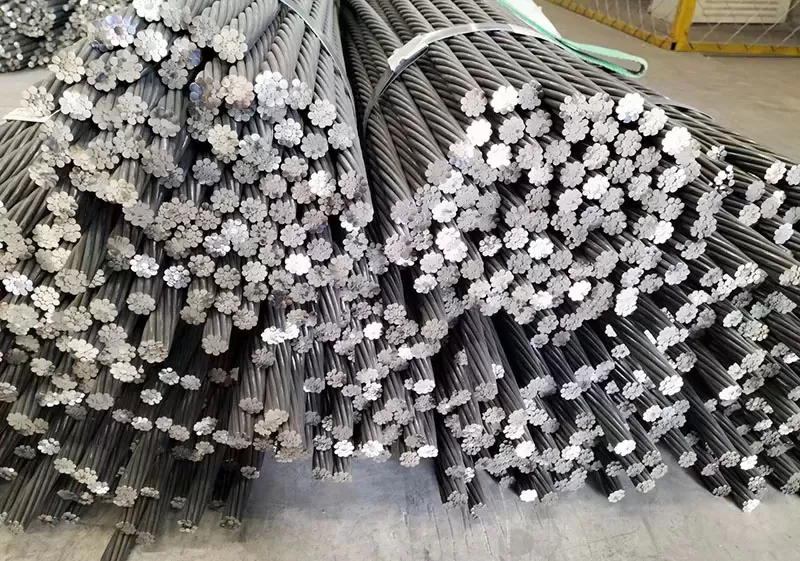

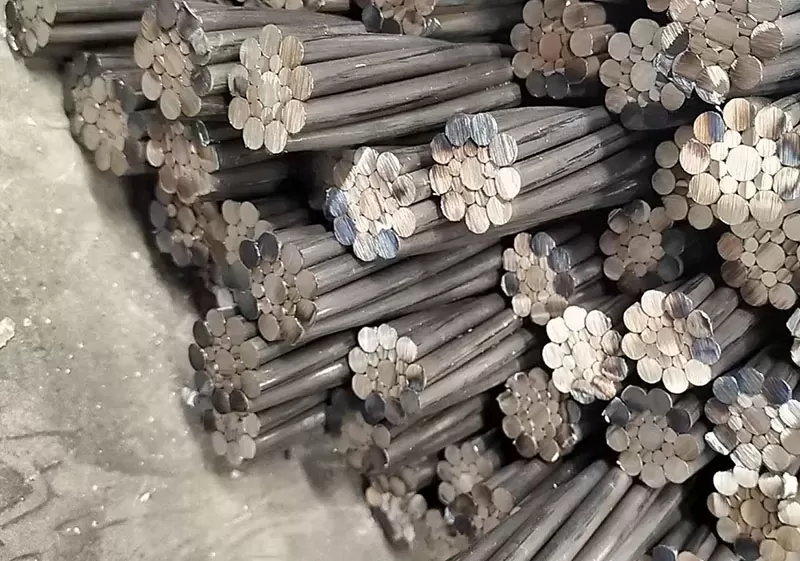

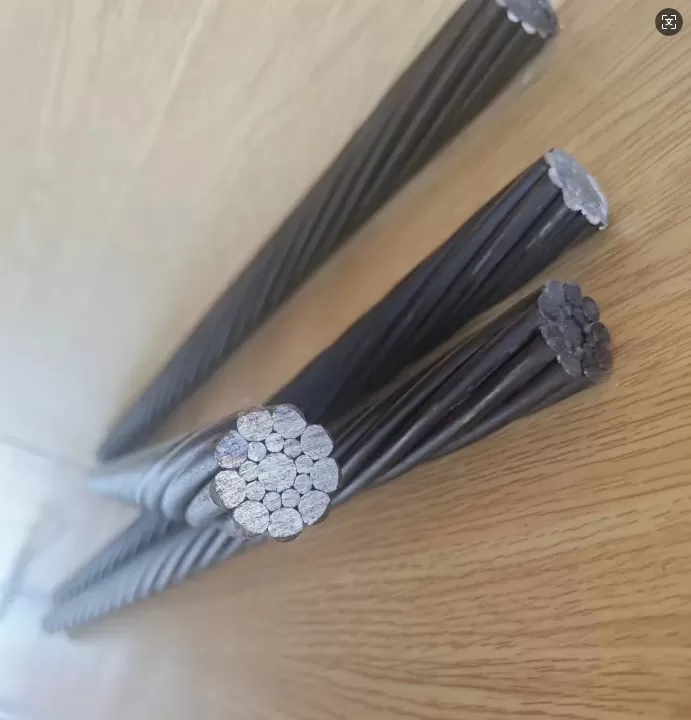

Prestressed Anchor / 19-wire PC strand, also known as a 19-wire prestressed concrete strand, is a type of construction material used in reinforced concrete structures.

PC stands for "prestressed concrete," which is a technique used to improve the performance and durability of concrete elements, especially in structures like bridges, buildings, and parking garages.

The 19-wire PC strand is a specialized construction material used to reinforce concrete structures, enhance their strength and durability, and enable the construction of complex and efficient designs in civil engineering and construction projects.

Inquire Now

ADVANTAGES

Advantages:

Using Prestressed Anchor / 19-wire PC strands in concrete structures provides several advantages, including improved structural performance, increased load-carrying capacity, reduced cracking, and enhanced durability. It allows for longer spans and thinner concrete sections, leading to more aesthetically pleasing and cost-effective designs. Seale type 19-wire pc strand as mining cable bolt has following main advantages:

Super high breaking force , the load capacity is very high , much safe;

Construction is much more easy , save a lot of time for construction under ground.

USE

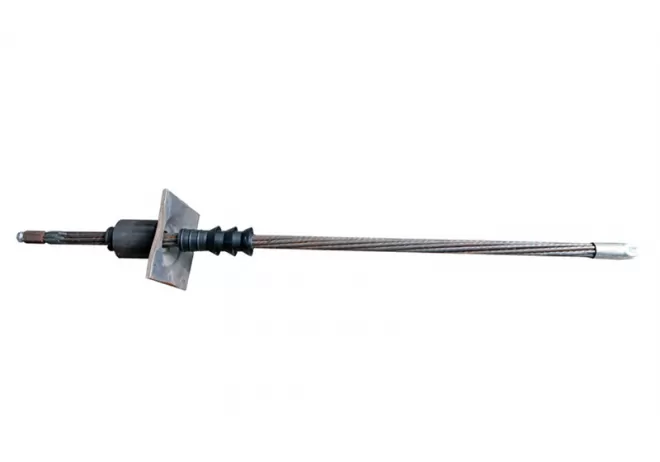

our mining cable bolt be used in the underground Roadway Roof Bolts. 19-wire PC strands are commonly used in a wide range of construction applications, including precast concrete elements like beams and girders, as well as in cast-in-place structures like bridges and high-rise buildings. They are also used in the construction of large infrastructure projects like cable-stayed and suspension bridges.

SPECIFICATIONS

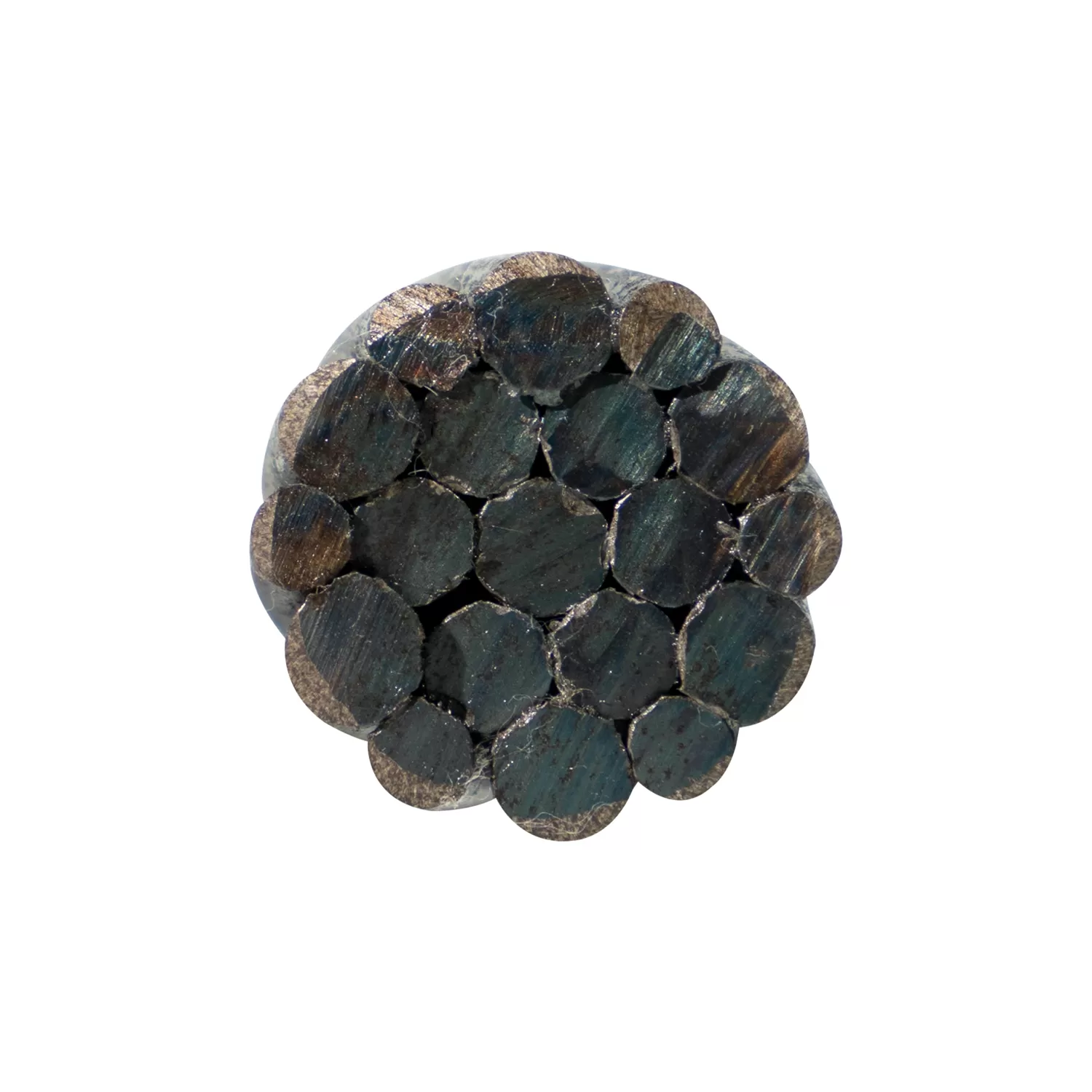

Structure	Standard	Diameter	T/S Grade . F m, kN
1x19S(1+9+9)	GB/T5224-2014	28. 6	915
1x19S(1+9+9)	GB/T5224-2014	17.8	368
1x19S(1+9+9)	GB/T5224-2014	19. 3	431
1x19S(1+9+9)	GB/T5224-2014	20.3	480
1x19S(1+9+9)	GB/T5224-2014	21.8	554
1x19S(1+9+9)	GB/T5224-2014	28.6	942
1x19S(1+9+9)	GB/T5224-2014	20.3	491
1x19S(1+9+9)	GB/T5224-2014	21. 8	567
1x19S(1+9+9)	GB/T5224-2014	17.8	387
1x19S(1+9+9)	GB/T5224-2014	19.3	454
1x19S(1+9+9)	GB/T5224-2014	20.3	504
1x19S(1+9+9)	GB/T5224-2014	21. 8	583
SWPR19L-S	JIS G3536	17.8	387
SWPR19L-S	JIS G3536	19.3	451
SWPR19L-S	JIS G3536	20.3	495
SWPR19L-S	JIS G3536	21. 8	573
SWPR19L-S	JIS G3536	28.6	949
1x19S(1+9+9)	ISO 6934-4	17.8	387
1x19S(1+9+9)	ISO 6934-4	19.3	454
1x19S(1+9+9)	ISO 6934-4	20.3	491
1x19S(1+9+9)	ISO 6934-4	21. 8	567
1x19S(1+9+9)	ISO 6934-4	28.6	949
1x19S(1+9+9)	GB/T 31314	17.8	387
1x19S(1+9+9)	GB/T 31314	17.8	408
1x19S(1+9+9)	GB/T 31314	19.3	454
1x19S(1+9+9)	GB/T 31314	19.3	478
1x19S(1+9+9)	GB/T 31314	20.3	491
1x19S(1+9+9)	GB/T 31314	20.3	504
1x19S(1+9+9)	GB/T 31314	21.8	567
1x19S(1+9+9)	GB/T 31314	21.8	583
1x19S(1+9+9)	GB/T 31314	28.6	942
1x19S(1+9+9)	GB/T 31314	28.6	963
1x19S(1+9+9)	GB/T 31314	28.6	990

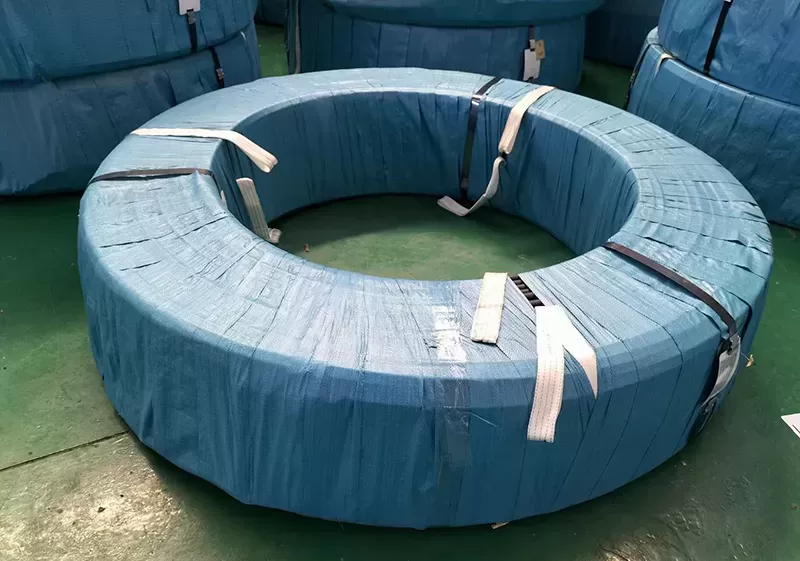

PACKAGE

we support customized packaging ways.
