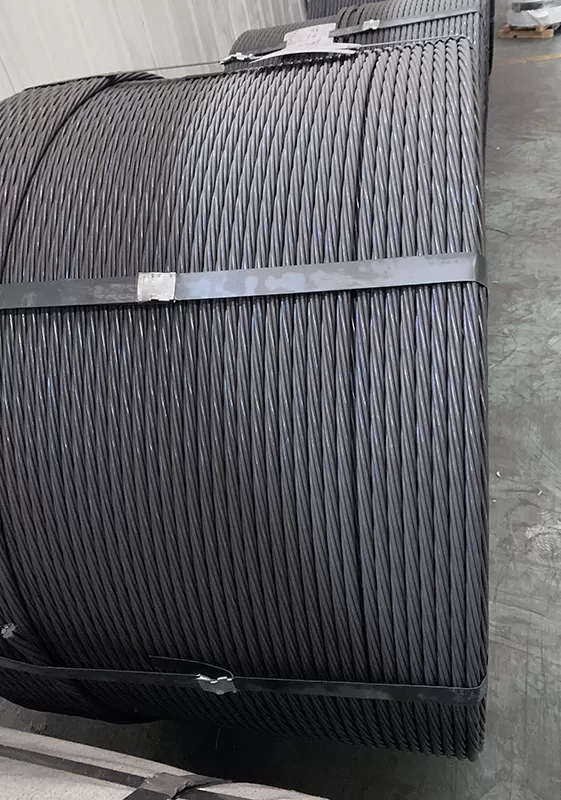

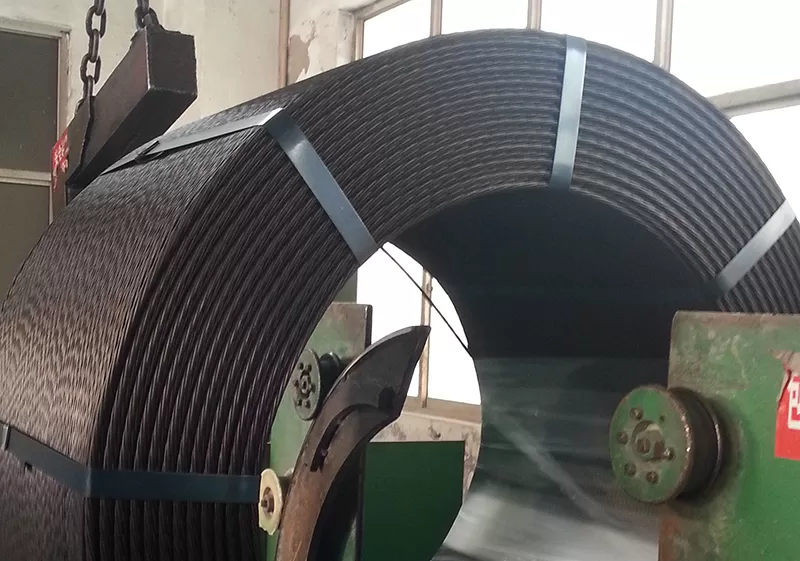

7-wire PC Strand EN10138

PC Strand EN10138

We provide this product in accordance with European Standard EN10138-3, currently we are able to provide full range specifications of this standard,including 2-wire strand , 3-wire strand , indented 3-wire strand , 7-wire strand , indented 7-wire strand , 7-wire compacted strand

Inquire Now

SPECIFICATIONS

PC Strand EN10138

Steel designation		Nominal ^a				Specified
Steel name	Steel number	Diameter D mm	Tensile strength Rm MPa	Cross- sectional area b Sn mm2	Mass per metre M g/m	Permitted deviation on mass per metre， %	Characteristic value of maximum force Fm kN	Maximum value of maximum force Fm, max kN	Characteristic value of 0,1 % proof force Fp0,1 kN
Y1770S2	1.1345	5,6	1 770	9,70	75,8	± 2	17,2	20,3	15,1
Y1770S2	1.1345	6,0	1 770	15,1	117,9	± 2	26,7	31,5	23,5
Y1770S3	1.1359	7,5	1 770	29,0	226,5	± 2	51,3	60,5	45,1
Y1860S2	1.1346	4,5	1 860	7,95	62,1	± 2	14,8	17,4	13,0
Y1860S3	1.136	4,85	1 860	11,9	92,9	± 2	22,1	26,1	19,4
		6,5		21,2	165,6		39,4	46,5	34,7
		6,9		23,4	182,8		43,5	51,3	38,3
		7,5		29,0	226,5		53,9	63,6	47,4
		8,6		37,4	292,1		69,6	82,1	61,2
Y1920S3	1.1357	6,3	1 920	19,8	154,6	± 2	38,0	44,8	33,4
Y1920S3	1.1357	6,5	1 920	21,2	165,6	± 2	40,7	48,0	35,8
1960S3	1.1361	4,8	1960	12,0	93,7	± 2	23,5	27,7	20,9
		5,2		13,6	106,2		26,7	31,5	23,8
		6,5		21,2	165,5		41,6	49,0	37,0
		6,85		23,6	184,3		46,3	54,6	41,2
Y2060S3	1.1362	5,2	2 060	13,6	106,2	± 2	28,0	33,0	24,9
Y2160S3	1.1363	5,2	2 160	13,6	106,2	± 2	29,4	34,7	26,2
Y1670S7	1.1364	15,2	1 670	139	1 086	± 2	232	274	204
Y1700S7G	1.137	18,0	1 700	223	1 742	± 2	379	447	334
Y1770S7	1.1365	6,9	1 770	29,0	226,5	± 2	51,3	60,5	45,1
		9,0		50,0	390,5		88,5	105	77,9
		9,3		52,0	406,1		92,0	109	81,0
		9,6		55,0	429,6		97,4	115	85,7
		11,0		70,0	546,7		124	147	109
		12,5		93,0	726,3		165	195	145
		12,9		100	781,0		177	209	156
		15,2		139	1 086		246	290	216
		15,3		140	1 093		248	292	218
		15,7		150	1 172		266	314	234
		18,0		200	1 562		354	418	312
Y1820S7G	1.1371	15,2	1 820	165	1 289	± 2	300	354	264
Y1860S7	1.1366	6,9	1 860	29,0	226,5	± 2	53,9	63,6	47,4
		7,0		30,0	234,3		55,8	65,9	49,1
		8,0		38,0	296,8		70,7	85,6	62,2
		9,0		50,0	390,5		93,0	110	81,8
		9,3		52,0	406,1		96,7	114	85,1
		9,6		55,0	429,6		102	120	89,8
		11,0		70,0	546,7		130	154	114
		11,3		75,0	585,8		140	165	123
		12,5		93,0	726,3		173	204	152
		12,9		100	781,0		186	220	164
		13,0		102	796,6		190	225	167
		15,2		139	1 086		259	306	228
		15,3		140	1 093		260	307	229
		15,7		150	1 172		279	329	246
Y1860S7G	1.1372	12,7	1 860	112	874,7	± 2	208	245	183
Y1860S7G	1.1372	15,2	1 860	165	1 289	± 2	307	362	270
Y1960S7	1.1367	9,0	1 960	50,0	390,5	±2	98,0	116	87,2
Y1960S7	1.1367	9,3	1 960	52,0	406,1	±2	102	120	90,8
Y2060S7	1.1368	6,4	2 060	25,0	195,3	± 2	51,5	60,7	45,8
		6,85		28,2	220,2		58,1	68,5	51,7
		7,0		30,0	234,3		61,8	72,9	55,0
		8,6		45,0	351,5		92,7	110	82,5
		11,3		75,0	585,8		155	183	138
Y2160S7	1.1369	6,85	2 160	28,2	220,2	± 2	60,9	71,8	54,2
