High Tensile Strength PC Strand BS5896

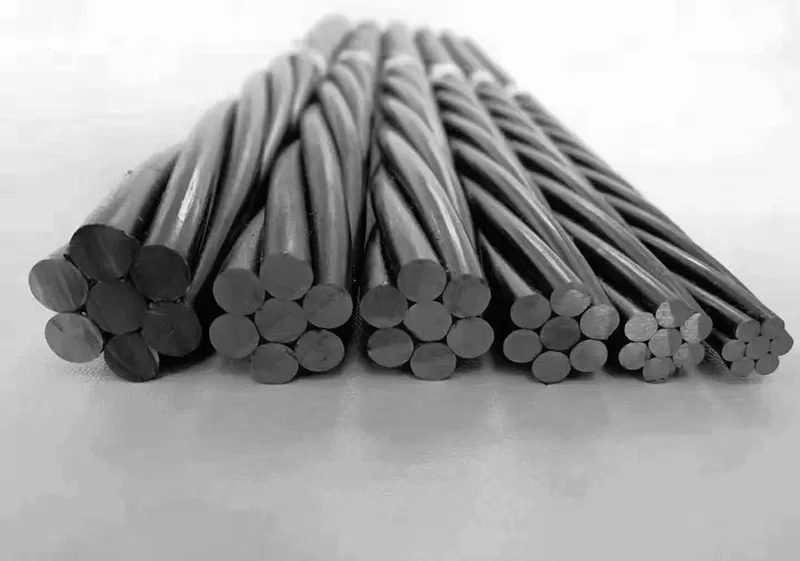

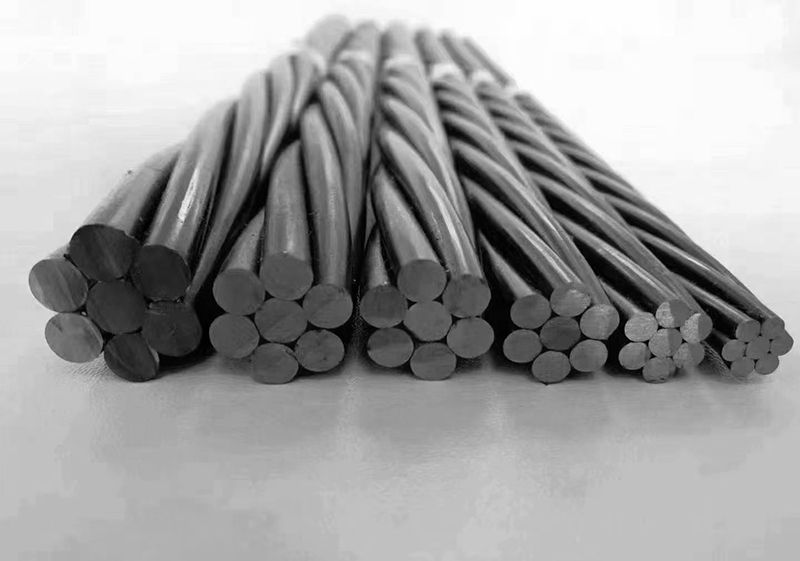

PC Strand BS5896 is high tensile steel strand for the prestressing of concrete , consisting of seven cold drawn wires spun together in the same direction and with the same lay length that is given a final thermo-mechanical treatment and is then wound into large diameter coils.We have 7-wire strand ,7-wire compacted strand and 7-wire indented strand available.

Inquire Now

SPECIFICATIONS

Steel name	Steel number	Diameter D mm	Tensile strength Rm MPa	Cross- sectional area b Sn mm2	Mass per metre M g/m	Permitted deviation on mass per metre， %	Characteristic value of maximum force Fm kN	Maximum value of maximum force Fm, max kN	Characteristic value of 0,1 % proof force Fp0,1 kN
Y1670S7	1.1364	15.2	1670	139	1086	±2	232	267	204
Y1700S7G	1.137	18	1700	223	1742	±2	379	436	334
Y1770S7	1.1365	9.3	1770	52	406.1	±2	92	106	81
Y1770S7	1.1365	11	1770	70	546.7	±2	124	143	109
Y1770S7	1.1365	12.5	1770	93	726.3	±2	165	190	145
Y1770S7	1.1365	15.7	1770	150	1172	±2	266	306	234
Y1820S7G	1.1371	15.2	1820	165	1289	±2	300	345	264
Y1860S7	1.1366	8	1860	38	296.8	±2	70.7	81.3	62.2
Y1860S7	1.1366	9.3	1860	52	406.1	±2	96.7	111	85.1
Y1860S7	1.1366	9.6	1860	55	429.6	±2	102	117	89.8
Y1860S7	1.1366	11.3	1860	75	585.8	±2	140	161	123
Y1860S7	1.1366	12.5	1860	93	726.3	±2	173	199	152
Y1860S7	1.1366	12.9	1860	100	781	±2	186	214	164
Y1860S7	1.1366	15.2	1860	139	1086	±2	259	298	228
Y1860S7	1.1366	15.7	1860	150	1172	±2	279	321	246
Y1860S7G	1.1372	12.7	1860	112	874.7	±2	208	239	183

PACKAGE

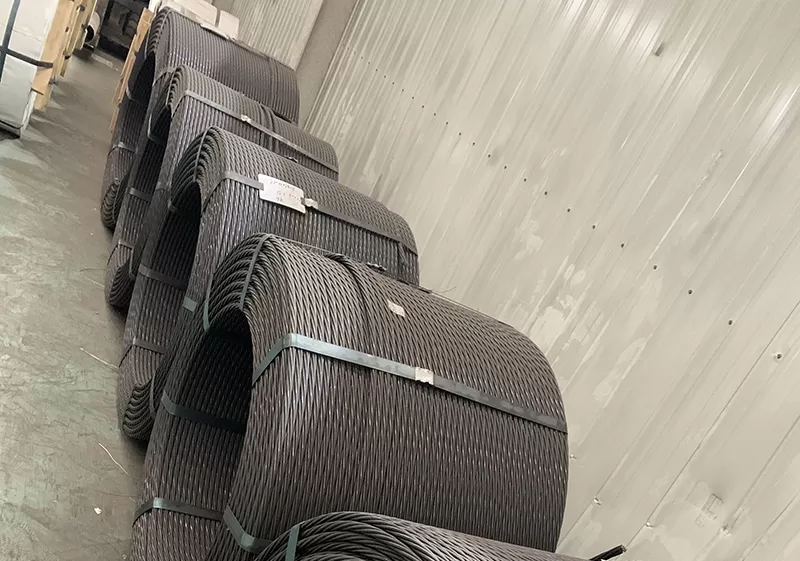

PACKAGES:

the material is held firmly by restraining bands or ties.

TAGS: Y1860S7, Y1860S7G, 7-wire strand ,Indented strand, 7-wire compacted strand
