Hdpe Coated PC Wire

Inquire Now

SPECIFICATIONS

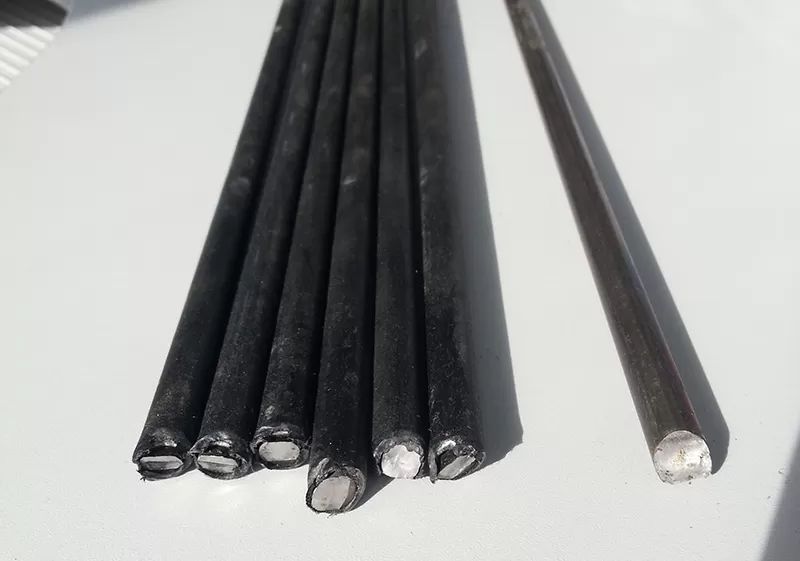

Hdpe Coated PC Wire

Steel Wire Before HDPE Coated		Steel Wire After HDPE Coated		Tensile Strength	Mass Per Meter
Diameter	Diameter Tolerance	Diameter	Diameter Tolerance	Mpa	g/m
mm	mm	mm	mm
3	±0.04	5	±0.05	1370	67.43
4	±0.04	6	±0.05	1470	113.52
5	±0.05	7	±0.05	1570	171.91

Steel Wire Before HDPE Coated		Steel Wire After HDPE Coated		Tensile Strength	Mass Per Meter
Diameter	Diameter Tolerance	Diameter	Diameter Tolerance	Mpa	g/m
mm	mm	mm	mm
7	±0.05	9	±0.05	1570 1670	325.88
8	±0.06	10	±0.06		420.87
9	±0.06	11	±0.06		528.84
10	±0.06	12	±0.06		648.83

RELATED PRODUCTS

Epoxy Coated PC Strand

Epoxy Coated PC Strand is manufactured in accordance with standard ASTM A882/A882, also called filled epoxy-coated seven-wire prestressing steel strand, it is ASTM A416/A416M low relaxation grade 270 seven-wire prestressing steel strand with protective fusion-bonded epoxy coating applied by the electrostatic deposition method.
Cable Acero 12.7mm

Cable Acero 12.7mm is 7-wire steel strand for prestressed concrete. This product is produced in my factory and is accepted in accordance with standards ASTM A416 and UNE 36094 & IRAM - IAS U 500-03 by Spanish speaking countries
Low relaxation 0.6 PC Strand

0.6 PC Strand is composited by 7 wires.High intensity, high breakage force, high extension,product has a good effect on improving safety coefficient and enhancing anchored force, these features make it be qualified in construction of railways, highways, bridges, mine, nuclear power plant, hydropower, large-span buildings.Low relaxation high tensile
High Tensile Strength Y1860S3 PC Strand

Y1860S3 steel strand is 3-wire steel strand with tensile strength 1860Mpa , and we can provide in accordance with standards EN10138, ASTM A910, JIS3536,IRAM-IAS U500-07, ABNT NBR7483:2008,IS:6006,BS5896,GB/T5224
