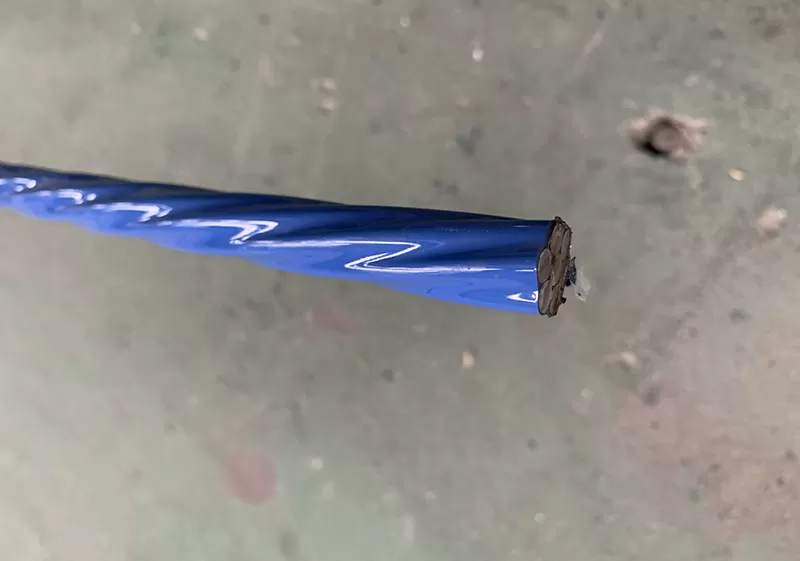

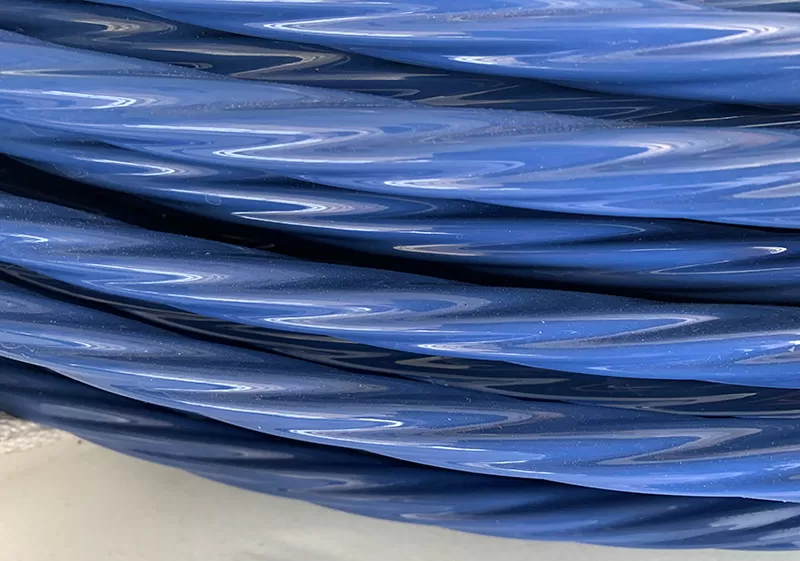

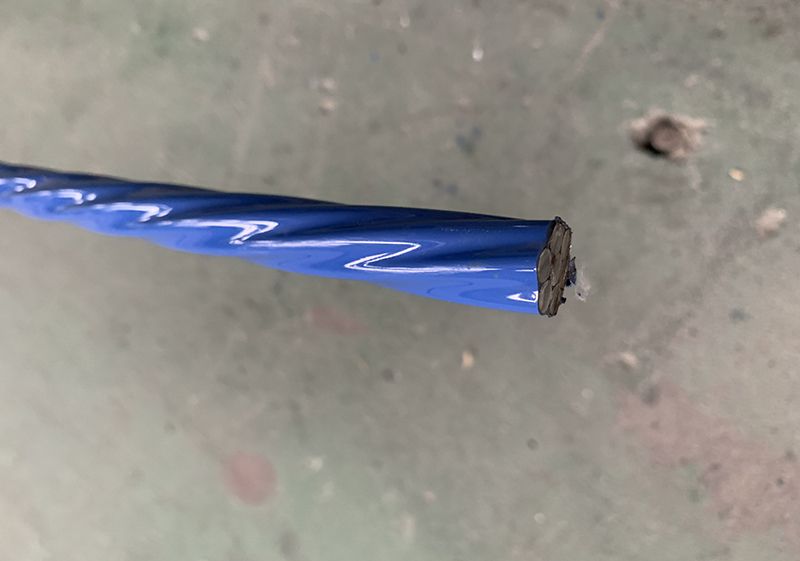

Filled Epoxy Coated Seven Wire Prestressing Steel Strand

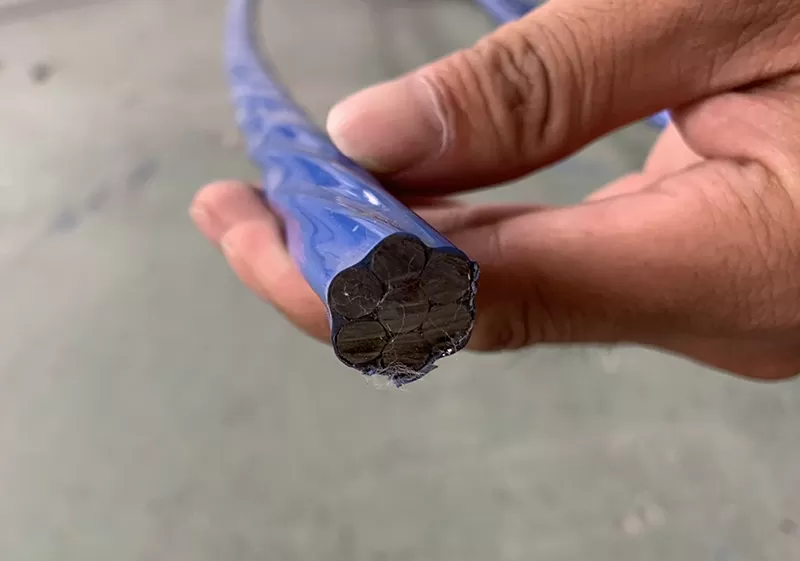

Filled Epoxy Coated Seven Wire Prestressing Steel Strand is epoxy-coated seven-wire strand in which the void spaces between the wires are completely filled with the epoxy coating to prevent migration of corrosive media, either by capillary action or other hydrostatic forces . We produce this type of epoxy coated strand strictly in accordance with ISO 14655. The Prestressing steel strand to be coated is in accordance with ISO 6934-4

Inquire Now

ADVANTAGES

-Primary advantages

The strand to be coated is satisfy the requirements for characteristic maximum force, 0,1 % proof force and elongation described in ISO 6934-4 .

Epoxy-coated strand has relaxation losses of not more than 4 % after 1 000 h when initially loaded to 70 % of specified characteristic maximum force of the strand

-Why should I buy this Filled Epoxy Coated Seven Wire Prestressing Steel Strand ?

After curing, the coating is free of holes, voids, cracks and damaged areas discernible to a person with normal or corrected vision.

Continuous holiday detection of the coated strand is performed. More than two holidays per 30 m are not allowed in our producing. Two holidays or less per 30 m will be repaired in accordance with the sealing material.

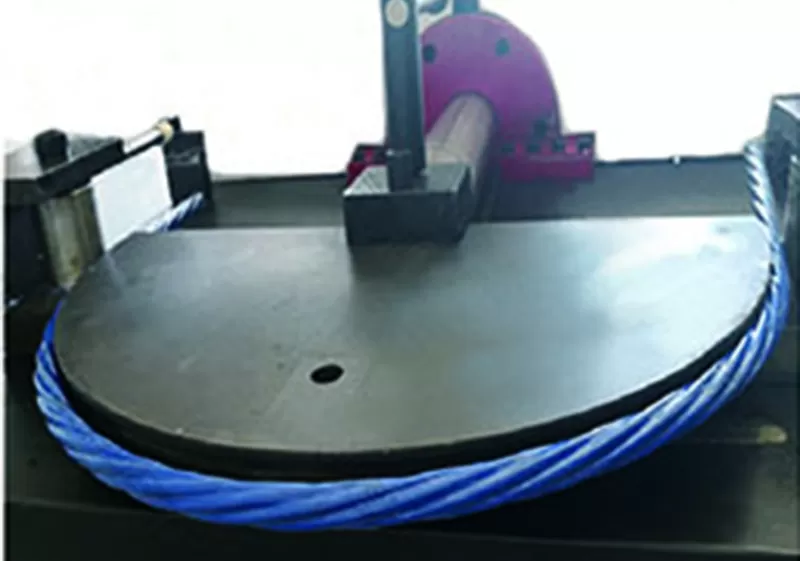

No cracking or disbonding of the coating is visible in bend test and tensile test.

-What makes this product different to other factory's Filled Epoxy Coated Seven Wire Prestressing Steel Strand?

Many times coating to reach the thickness of epoxy coating

USE

-Where can our Filled Epoxy Coated Seven Wire Prestressing Steel Strand be used?

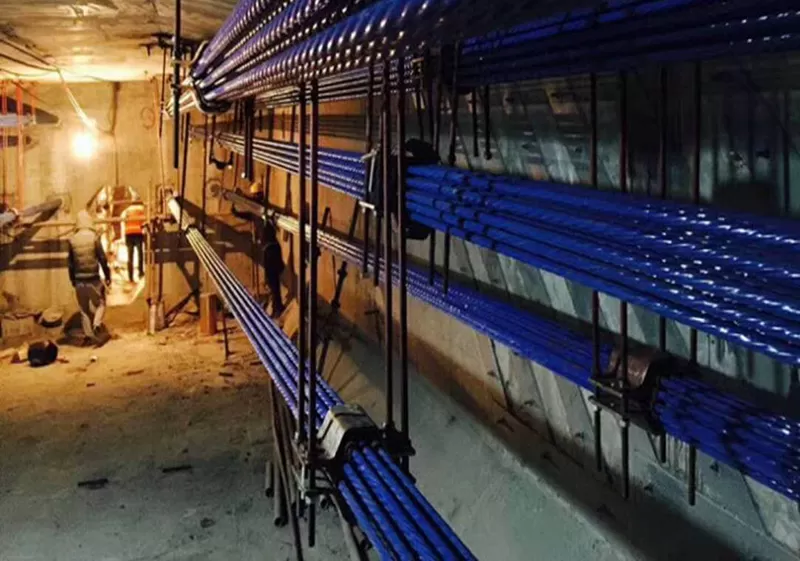

External tendon for box girder , stay cable

SPECIFICATIONS

12.7mm

15.2mm

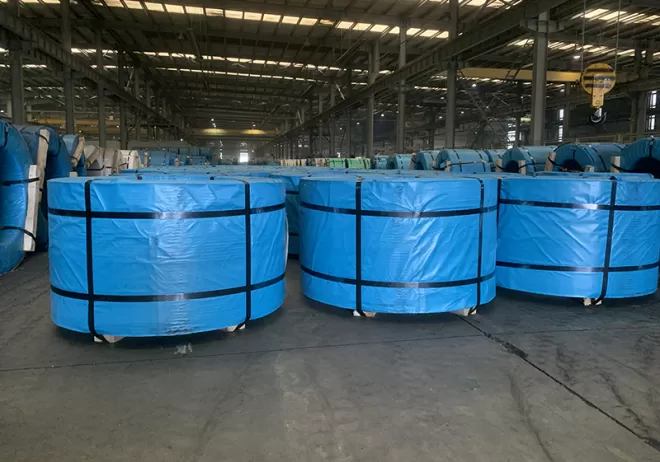

PACKAGE

As per clients’ requirement

TAGS: Filled Epoxy Coated Seven Wire Prestressing Steel , poxy-coated strand for prestressing of concrete
