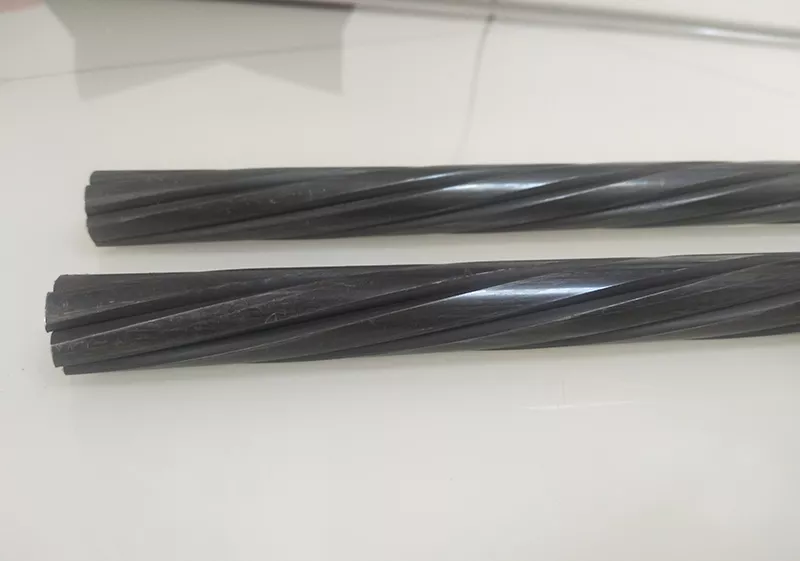

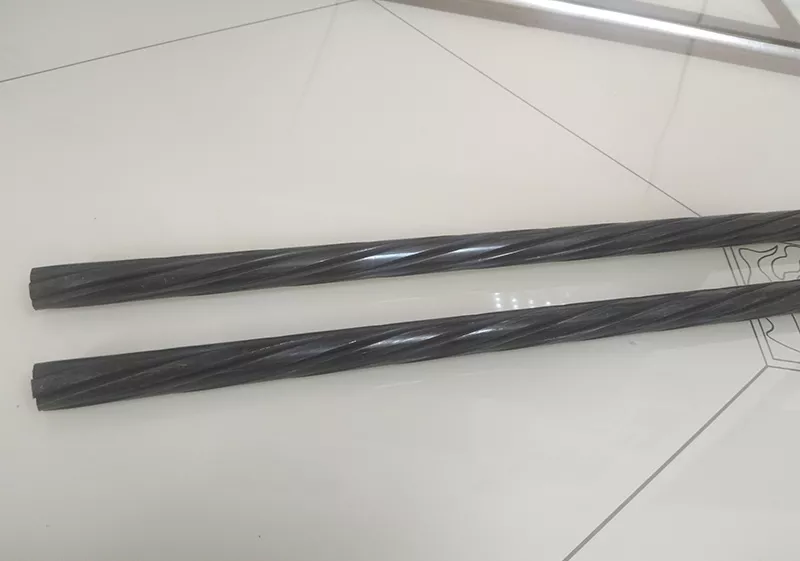

Compacted Steel Strand

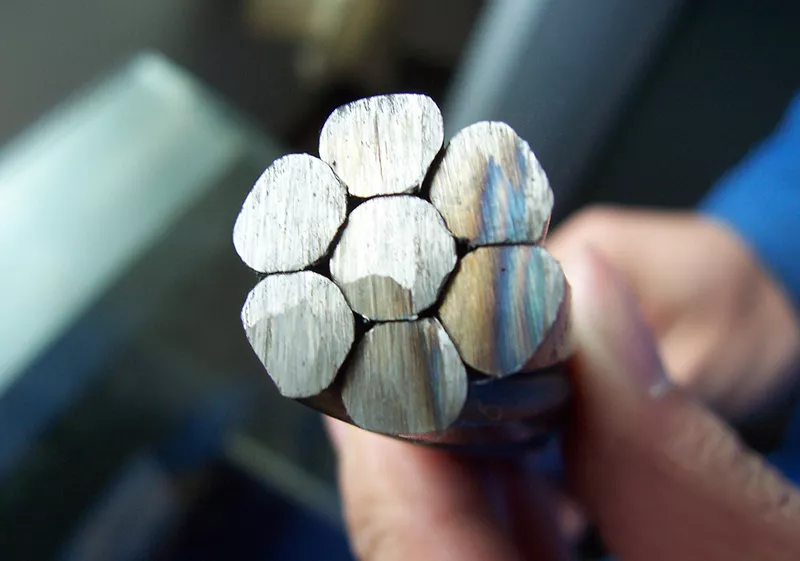

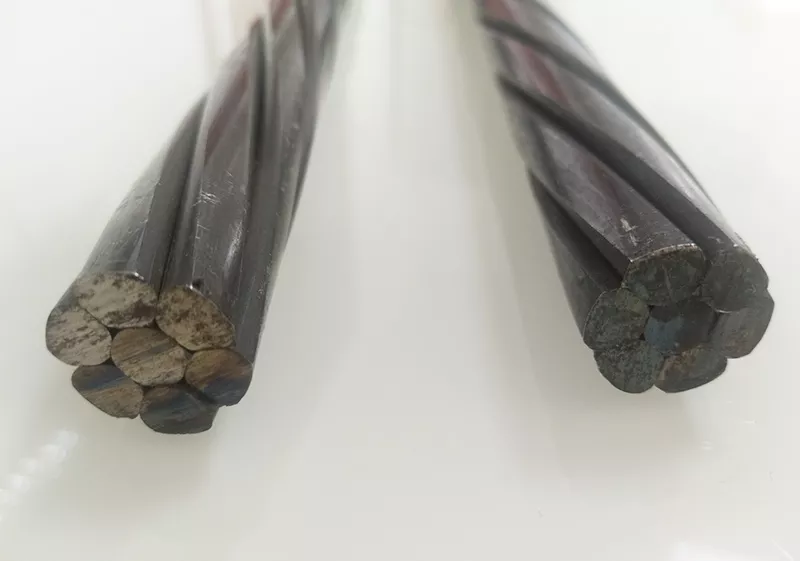

7 wire compacted strand, Seven-wire strand which after stranding has been compacted by drawing or rolling before stress relief treatment. It is also called super steel strand.

Inquire Now

SPECIFICATIONS

SUPER COMPACTED STEEL STRAND

GB/T 5224

Structure	Nominal diameter	Tolerance on Diameter	Nominal Area of Section	Weight of strand	Tensile Strength, Rm	Minimum Breaking load,Fm	0,2% proof force , Fp0.2	Elongation Lo=500mm, Agt	Curvative of strand	Lay Length	The Relaxation at 1000h (initial load to 70% of nominal max load ) (r/%) Not more than
	(mm)	(mm)	(mm²)	(kg/1000m)	(N/mm²)	KN	KN	(%)	mm	mm
(1X7)C	12. 70	0.4	112	890	1860	208	183	3.5	Max bow height = 25mm/ 1meter	(12-16)d	2.5
	15. 20	-0.15	165	1295	1820	300	264
	18		223	1750	1720	384	338

pr EN10138-3

Steel Name	Steel Number	Diameter	Tensile strength	Cross-sectional area	Mass per meter	Permitted deviation on mass per meter	Characteristic value of maximum force	Maximum value of maximum force	Characteristic value of 0.1% proof force	Min.Elong. Lo=500mm	Curvative of strand	Lay Length	Relaxation 1000h value no more than (initial load at 70% specified breaking load)
		D	R_m	S_n	M		F_m	Fm,max	Fp0.1
		mm	MPa	mm²	g/m	%	kN	kN	kN	%	mm	mm	(%)
Y2060S7G*	1.1372	12.7	1860	112	874.7	±2	208	239	183	3.5	Max bow height = 25mm/ 1meter	(14-18)d	2.5
Y2060S7G*	1.1372	15.2	1860	165	1289	±2	307	353	270
Y1700S7G*	1.137	18	1700	223	1742	±2	379	436	334

Other Specification: ASTM A779/A779M

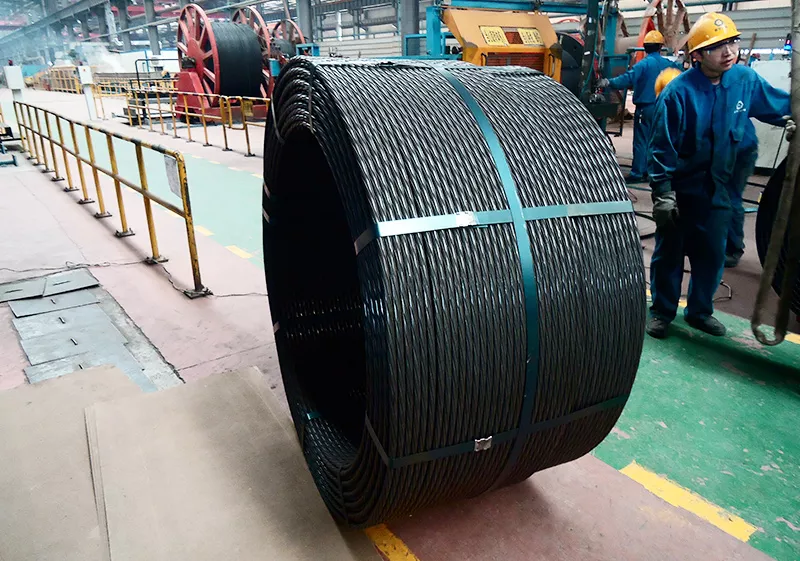

PACKAGE

At least 8 steel strips + PE film + packing cloth composed by paper and woven + pallet

RELATED PRODUCTS

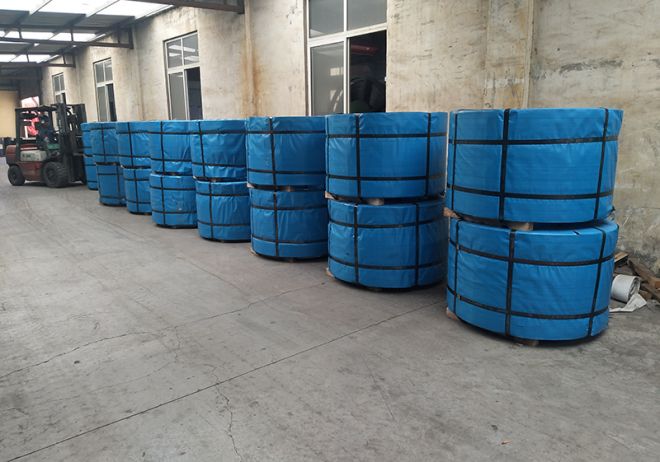

High tensile strength low relaxation 1x7 PC Strand

1x7 PC Strand includes a straight central wire, called a core wire around which are spun six wires in one layer.The outer wires is tightly spun around the central wire with a lay length.The diameter of the central wire is greater than the diameter of the outer helical wires. Our factory could accord to different standards to produce this product.

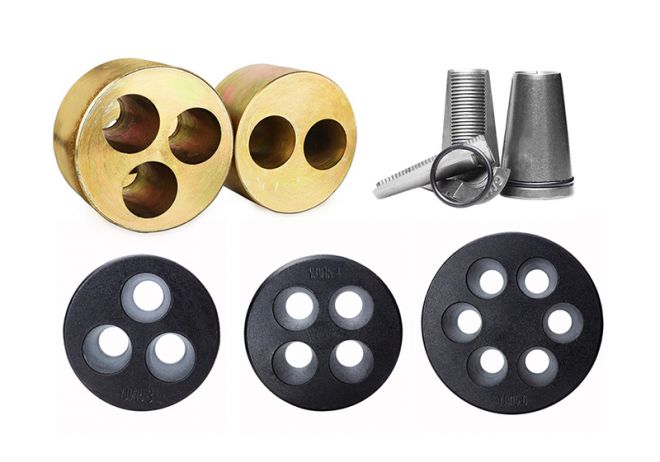

Enclosed Anchor

Enclosed Anchor Encloded anchor could be used for diameter 5.0mm to 15.24mm tendons, composited with anchor head , wedge , extruded cover with thread and spring. Thread the steel strand through the corresponding hole on the anchor head, and after the steel strand passes through the corresponding hole, squeeze the clip into the hole and fix the stee
High Tensile Strength 15.7 mm PC Strand

15.7 mm PC Strand ‘s feature is 150 mm2 cross section area , comparing with the specifications 15.2 mm and 15.24mm, at the same tensile strength 1860 Mpa ,

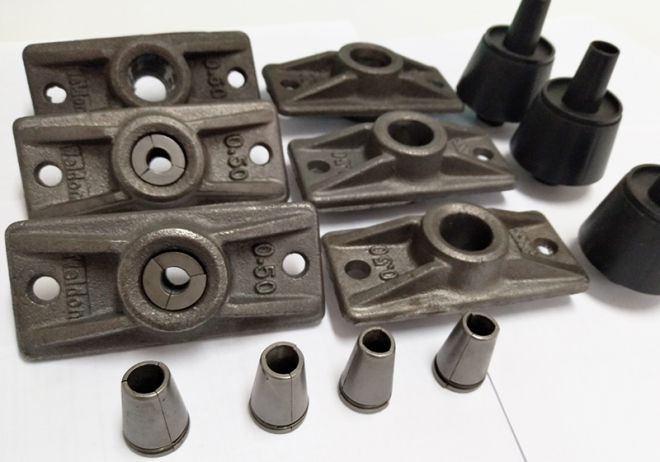

Mono Anchorage
