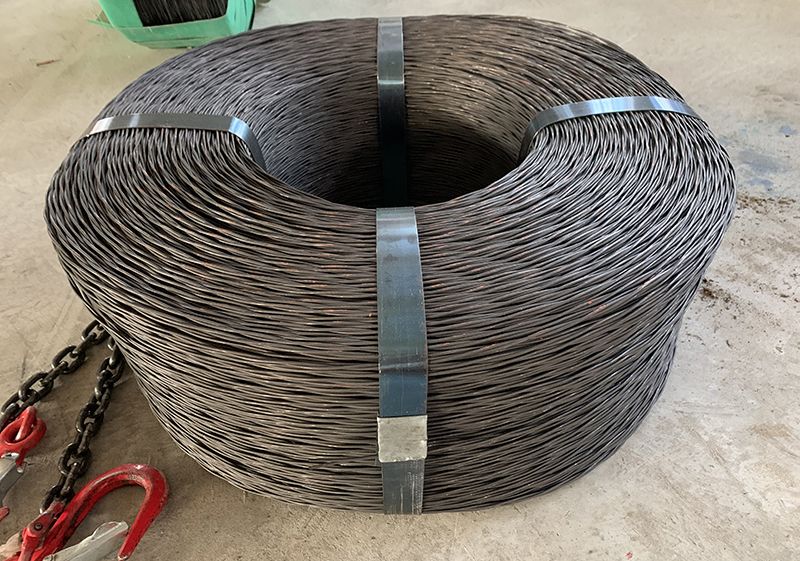

Alta intensidad Cable De Acero De 3 Hilos

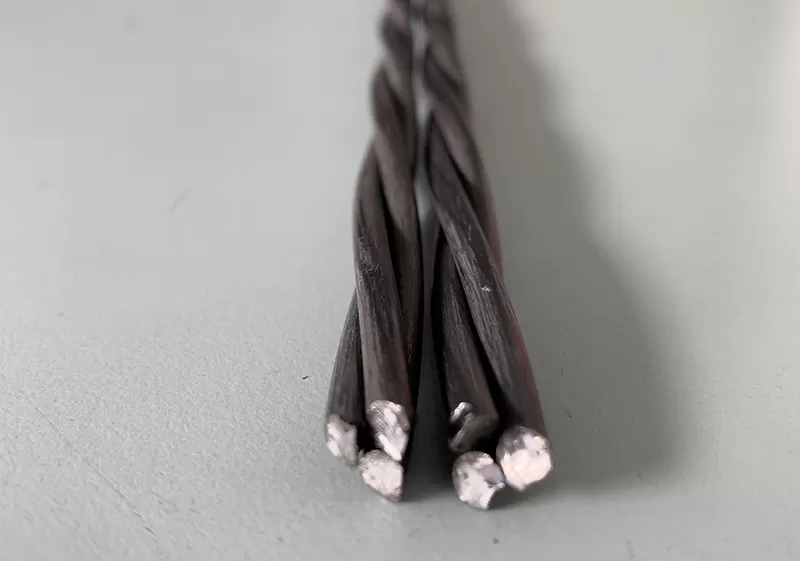

Cable De Acero De 3 Hilos is 3-wire steel strand . We provide this product as per standard ABNT NBR7483:2008. The strand is manufactured with wires of the same nominal diameter, firmly baled with a step of 12 to 16 times the nominal diameter of the strand.The wire in the strands is cold-hardened by drawing using a carbon steel machine-wire.The levels of phosphorus and sulfur does not exceed the following values:

− phosphorus: 0.020%

− sulfur: 0.025%

The wires that make up the strand, when cut with discs, are not moved from their original position or,if they are, that they can be manually repositioned.

Inquire Now

ADVANTAGES

-Primary advantages

Cable De Acero De 3 Hilos

High tensile strength , low relaxation

The strands, when unrolled and laid down on a flat and smooth surface,

present a curvature with a permanent bend/sag/rise less than 15 cm, for a 2 m length.

-Why should I buy this Cable De Acero De 3 Hilos ?

We are the direct supplier of 1x3 PC Strand, the price is very competitive in the market.

-What makes this product different to other factory's 1x3 PC Strand?

We can control the wire diameter in a very narrow tolerance range.

USE

-Where can our Cable De Acero De 3 Hilos be used?

Pretensioned and posttensioned prestressed concrete construction.

Concrete products manufacture, such as concrete railway sleeper , precast beam , concrete pole/ concrete colum

SPECIFICATIONS

Category	Number of wires	Designationa	Nominal diameter of strand wire, mm	Nominal diameter tolerance	Area of steel strand section mm²			Nominal mass kg / 1000 m	Minimum rupture load kN	Minimum load at 1% elongationb kN	Total minimum elongationc after breaking %	Maximum relaxation after 1 000 h %
Category	Number of wires	Designationa	Nominal diameter of strand wire, mm	Nominal diameter tolerance	Minimum	Normal	Maximum	Nominal mass kg / 1000 m	Minimum rupture load kN	Minimum load at 1% elongationb kN	Total minimum elongationc after breaking %	Maximum relaxation after 1 000 h %
RB 210	3 wires	C P 210 R B 3 x 3,0	3 x 3.00	+/-0.3	21.5	21.8	22.8	171	44.3	39.9	3.5% min	3.5% Max.
		C P 210 R B 3 x 3,5	3 x 3.50		30	30.3	31.8	238	61.8	55.6
		C P 210 R B 3 x 4,0	3 x 4.00		37.6	38.7	39.8	304	77.5	69.7
		C P 210 R B 3 x 4,5	3 x 4.50		46.2	46.6	48.9	366	95.2	85.7
		C P 210 R B 3 x 5,0	3 x 5.00		65.7	66.2	69.6	520	135.3	121.8

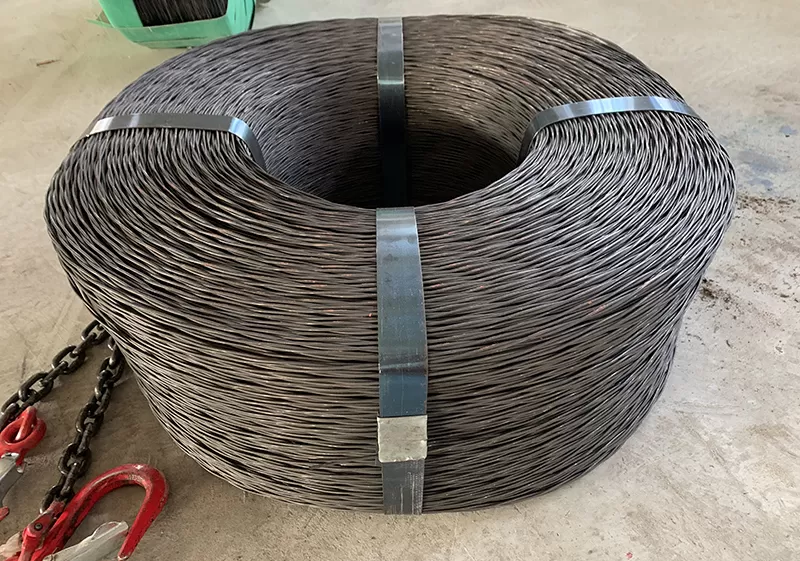

PACKAGE

As per clients’ requirement

TAGS: Steel strand for prestressed concrete structures, Steel strand, Prestressed concrete, three-wire strand
