Cable Acero 12.7mm

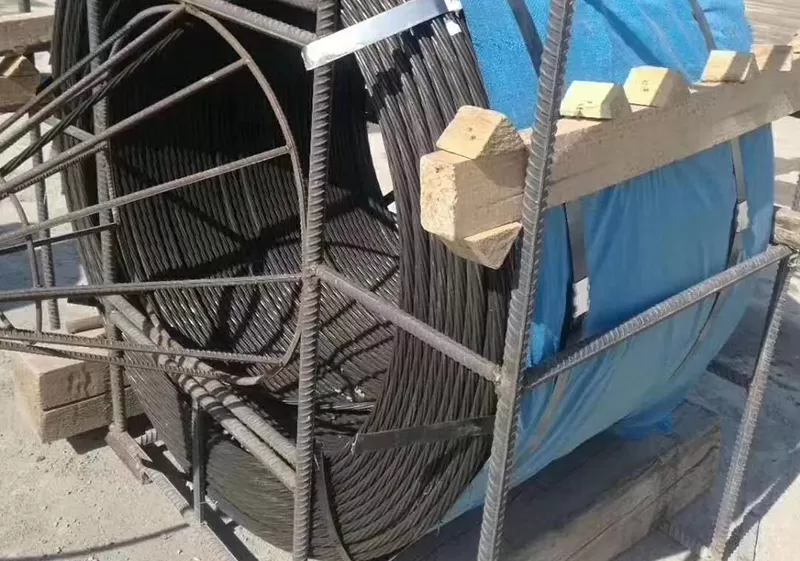

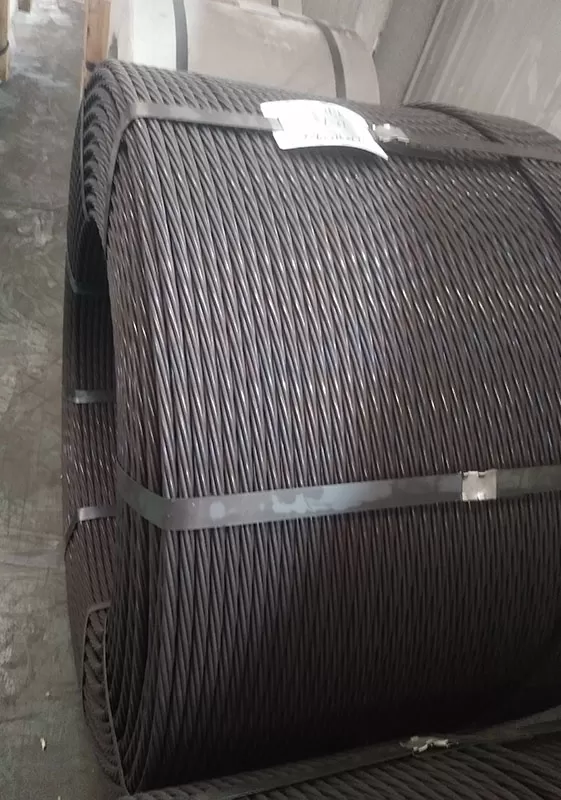

Cable Acero 12.7mm is 7-wire steel strand for prestressed concrete. This product is produced in my factory and is accepted in accordance with standards ASTM A416 and UNE 36094 & IRAM - IAS U 500-03 by Spanish speaking countries

Inquire Now

SPECIFICATIONS

Cable Acero 12.7mm : ASTM A416

Cable Acero 12.7mm Breaking Strength

Nominal Diameter of Strand, in. [mm]	Minimum Breaking Strength of Strand, lbf [kN]	Steel Area of Strand, in. 2 [mm 2 ]	Weight [Mass] of Strand lb/1000 ft [kg/1000 m]
Grade 270 [1860]
0.500[12.7]	41300[184]	0.153[98.7]	520[780]

Cable Acero 12.7mm Yield Strength

Nominal Diameter of Strand in. [mm]	Initial Load, lbf [kN]	Minimum Load at 1.0 % Extension, lbf [kN]
Grade 270 [1860]
0.500[12.7]	4130[18.4]	37170[165.3]

Cable Acero 12.7mm Diameter Relation Between Center and Outer Wires

Nominal Diameter of Strand, in. [mm]	Minimum Difference Between Center Wire Diameter and Diameter of Any Outer Wire, in. [mm]
Grade 270 [1860]
0.500[12.7]	0.003[0.076]

Cable Acero 12.7mm : IAS U 500-03

Designación de los alambres IRAM – IAS U 500 – 03 ( * )	Diámetro nominal	Carga al 1 % de alargamiento total mínimo ( ** )	Carga de rotura mínima	Límite de fluencia mínimo	Resistencia a la tracción mínima	Alargamiento porcentual de rotura bajo carga sobre 200 mm mínimo	Relajación máxima a 1000 h y 20 ºC, para una carga inicial expresada en % de la carga de rotura
							Qt
							Baja relajación BR
		Q1	Qt	Re	R	At	60 % Qt	70 % Qt	80 % Qt
	mm	kN	kN	MPa	MPa	%	%	%	%
C – 1750	12.7	144	160	1550	1722	3.5	1	2.5	3.5
C – 1900	12.7	166	184	1682	1864

RELATED PRODUCTS

7-wire PC Strand EN10138

PC Strand EN10138 We provide this product in accordance with European Standard EN10138-3, currently we are able to provide full range specifications of this standard,including 2-wire strand , 3-wire strand , indented 3-wire strand , 7-wire strand , indented 7-wire strand , 7-wire compacted strand
Open Anchor

This open anchor is composited with a round anchor head and wedge. We produce this kind of mono anchorage for stressing a single tendon.

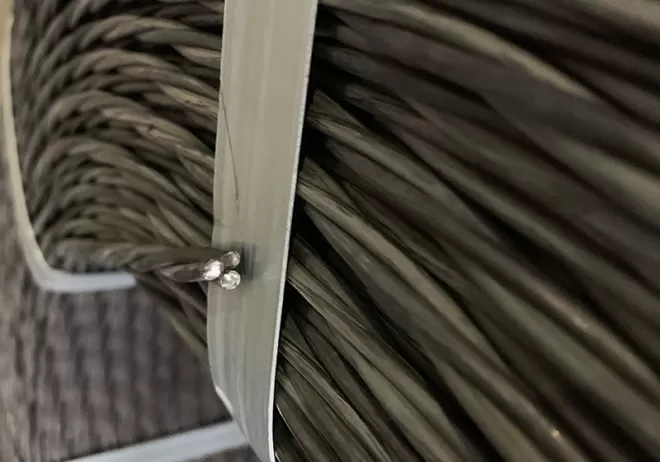

Three-Wire PC Strand
