Anchorage

Prestressed Anchorage System is composed of stressing-end anchorage, dead-end anchorage, coupler, strand, duct, etc. It can be used in locking prestressed tendons with different diameters 3.0mm to 28.6mm.

We are in the position to supply 1 to 55 holes anchorage system and post tension equipment in accordance with following standards.

Inquire Now

ADVANTAGES

National Standards of People's Republic of China: GB/T14370 (Anchorage, grip and coupler for prestressing tendons)

People's Republic of China Transportation Industry Standard: JT/T329-2010 (Prestressing strand anchorage, grip and coupler for highway bridge)

People's Republic of China Railway Industry Standard: TB/T3193-2016(Anchorage, grip and coupler for prestressing tendons in railway construction)

FIP-1993: Recommendations for the acceptance of post-tensioning systems

JTG D62-2004: Design of Highway Reinforced Concrete and Prestressed Concrete Bridges and Culverts

JTJ 041-2000: Technical specifications for construction of highway bridges and culverts

TB 10002.3-1999: Design on reinforced and prestressed concrete structure of railway bridge and culvert

TB 10203-2002: Construction on bridge and culvert of railway

JGJ 85-2010: Technical specification for application of anchorage, grip and coupler for prestressing tendons

JG/T321: Industry standard for hydraulic jacks for prestressing

JG/T319: Industrial standard of electric oil pump for prestressing

We accept OEM, ODM.

SPECIFICATIONS

Anchorage

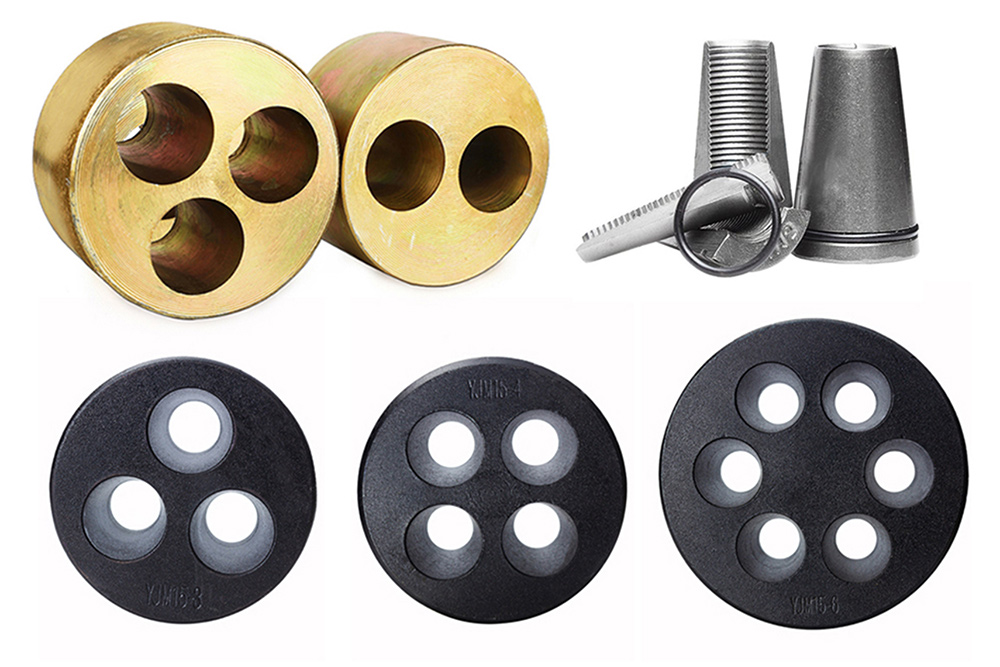

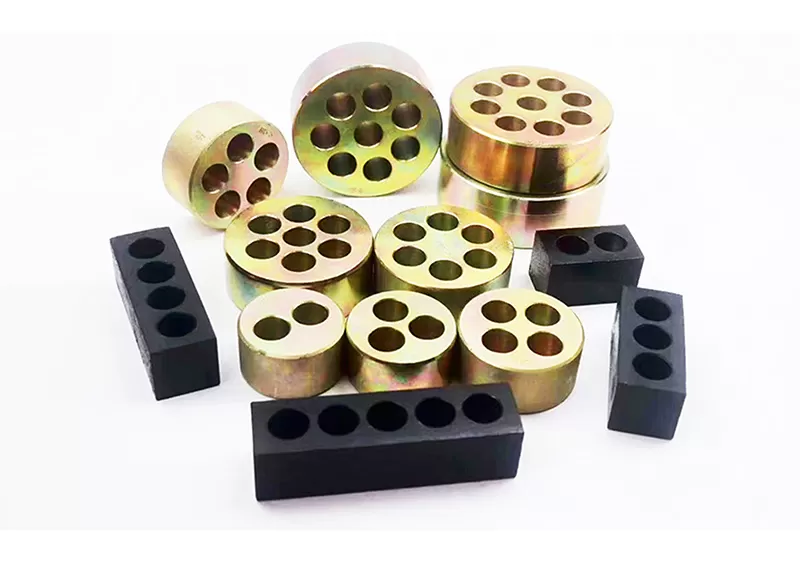

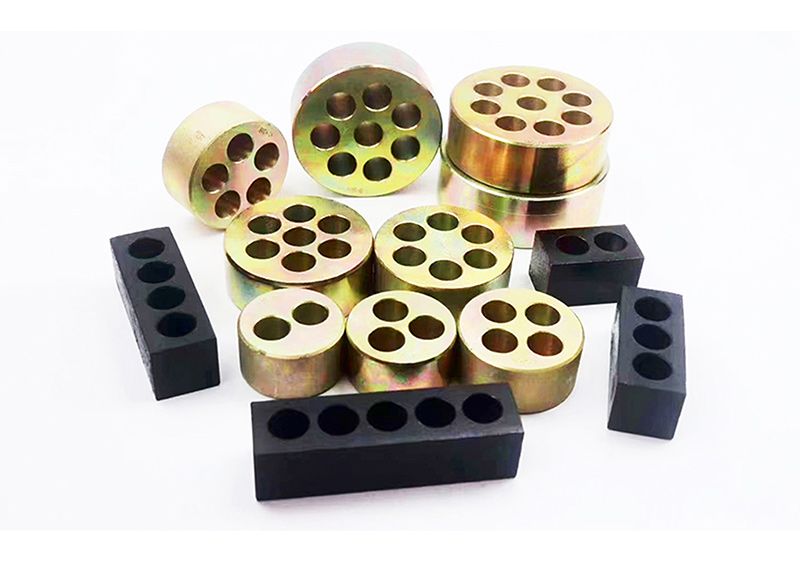

Multi-strand Anchorage

Anchorage

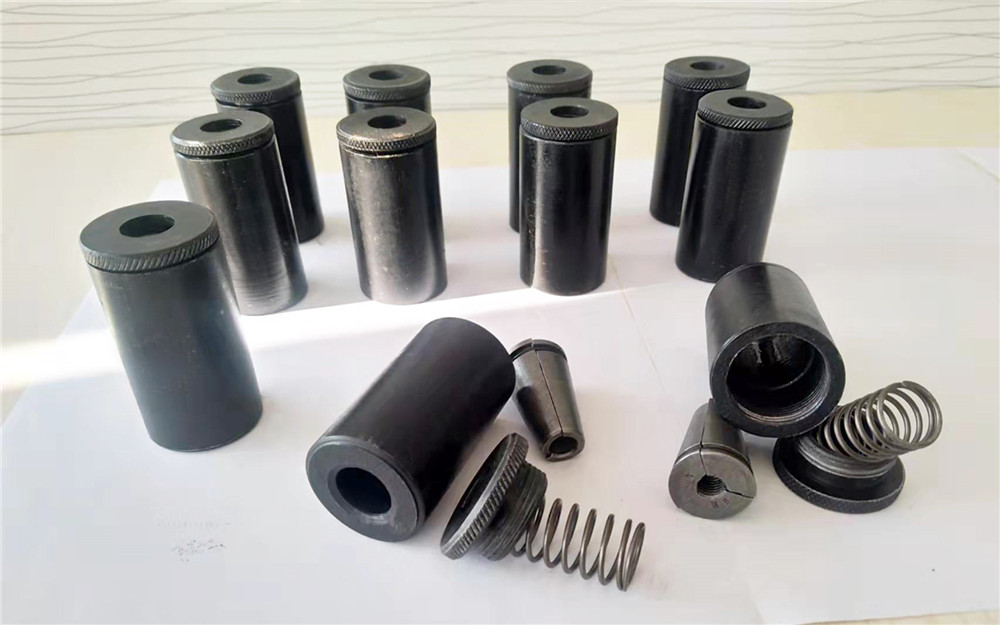

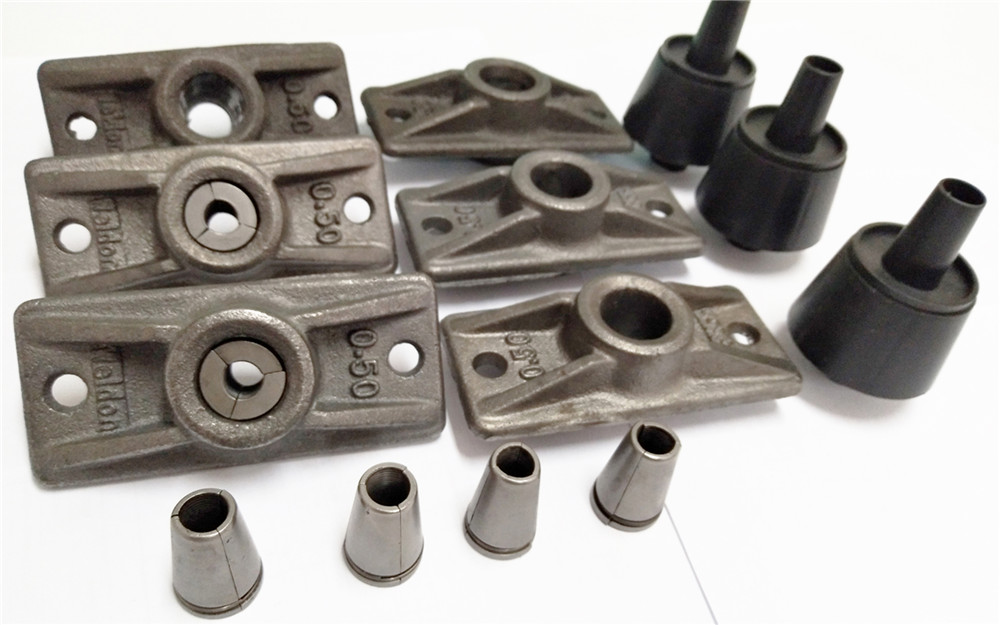

Mono-strand Anchorage

Anchorage

Mono-strand Anchorage

Anchorage

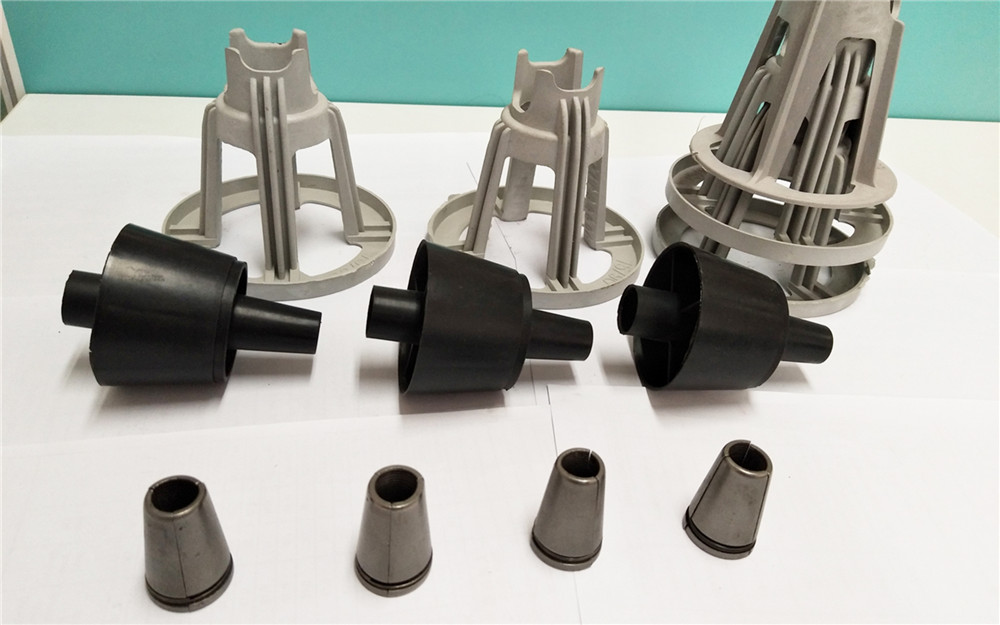

Pocket Former and Plastic Chair

Anchorage

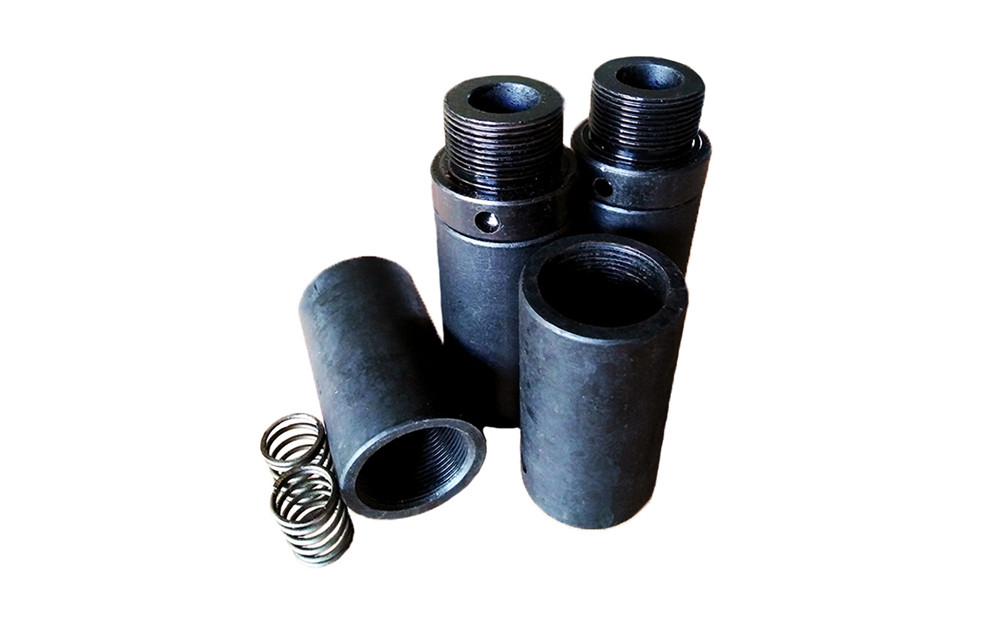

Single Tendon Coupler

Anchorage

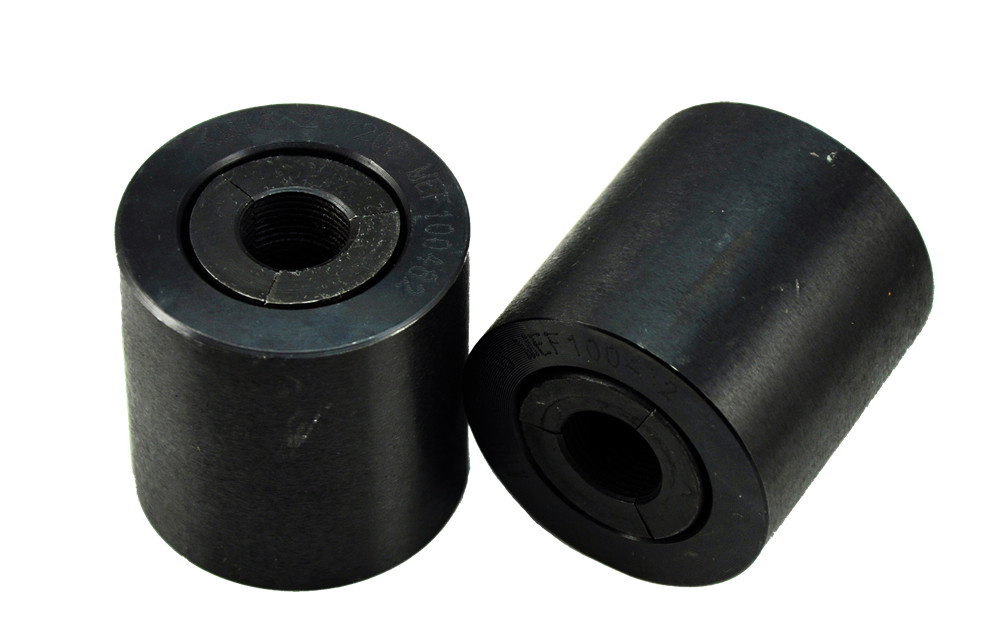

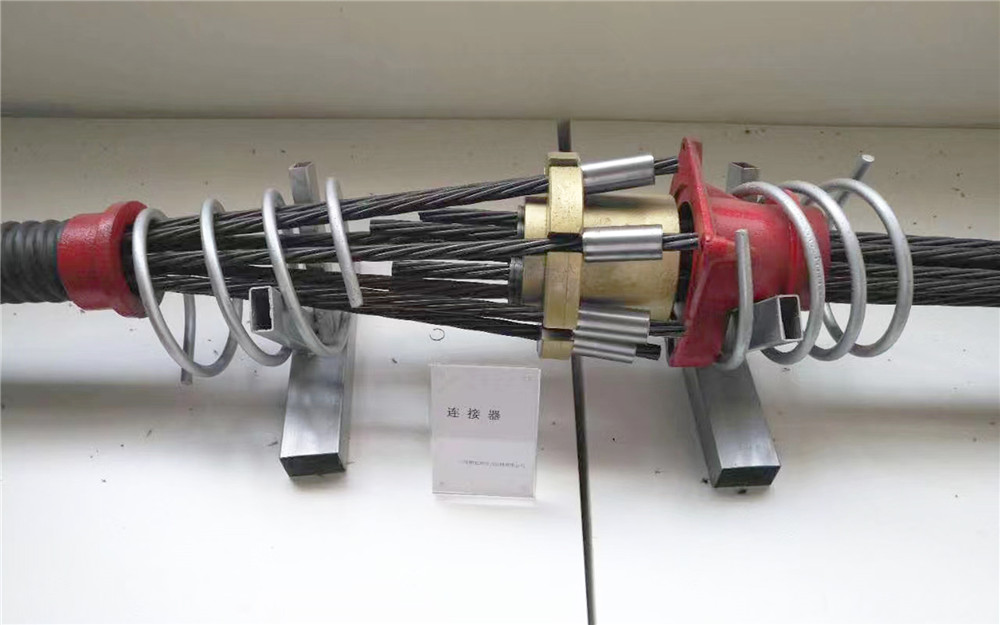

Coupler for multi strands

Anchorage

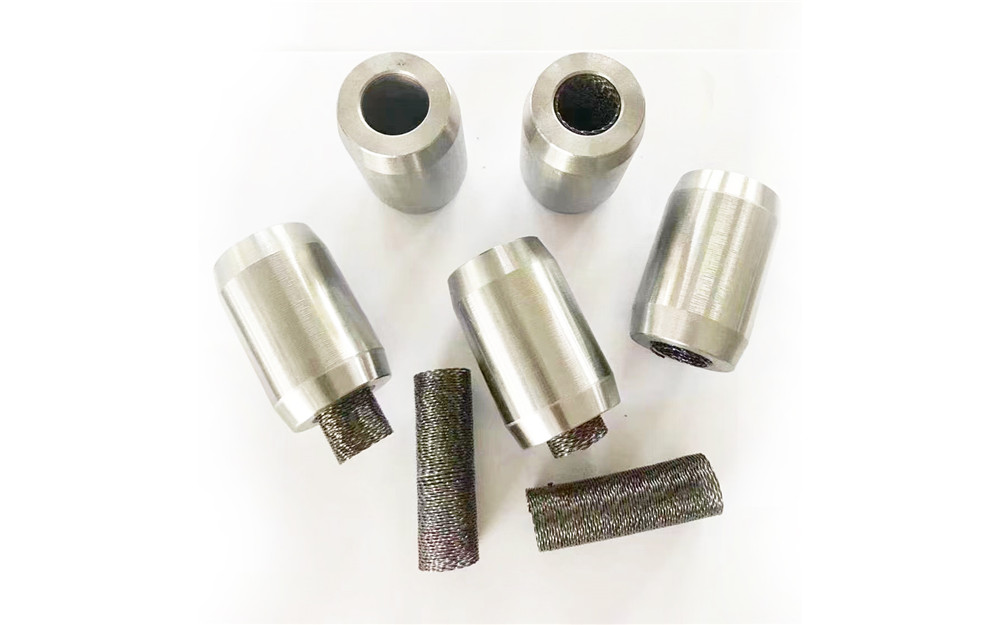

Swage Anchorage

Anchorage

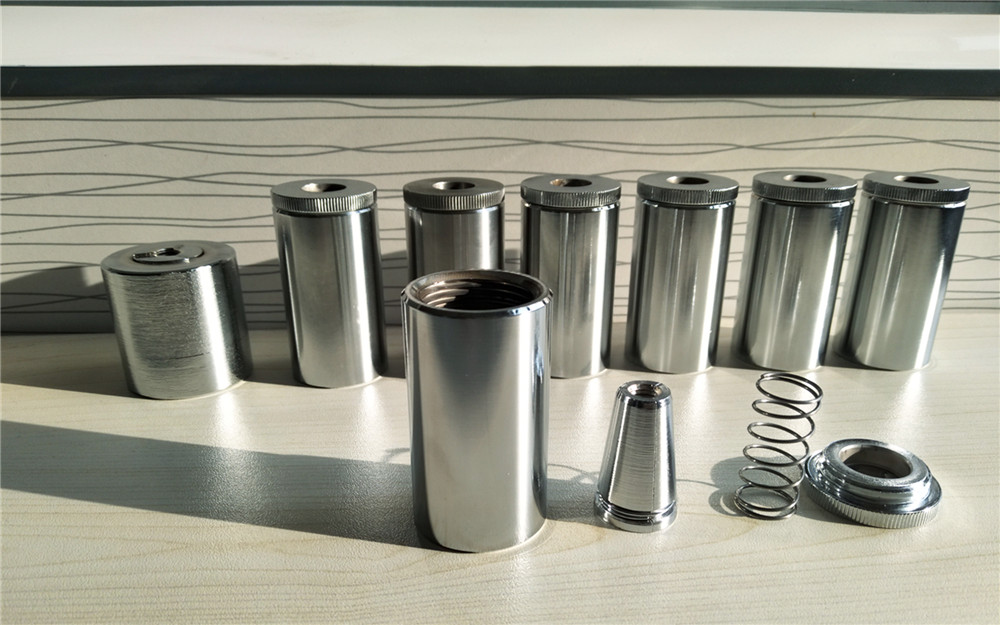

Enclosed Anchorage

Anchorage

Enclosed Anchorage

Anchorage

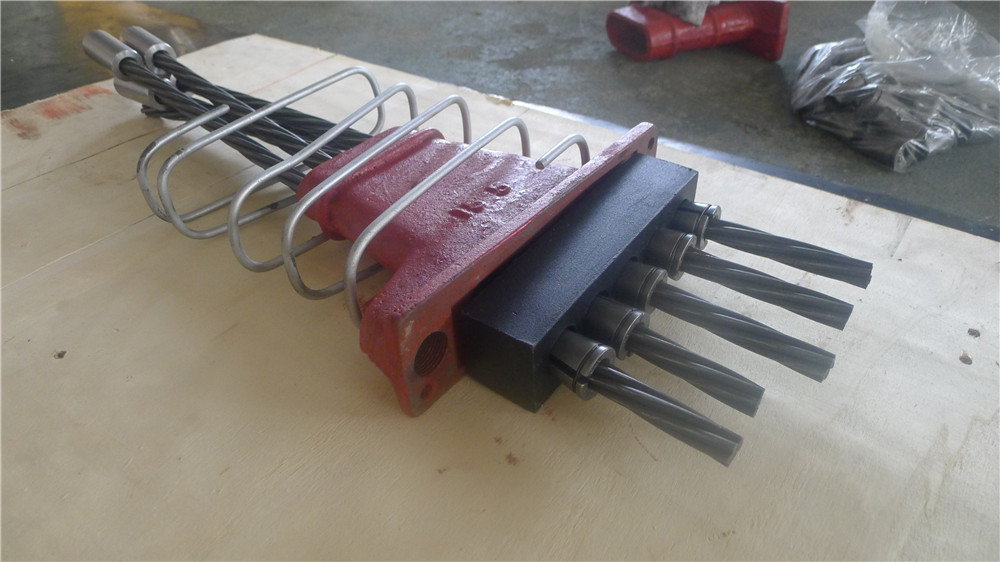

Stressing end anchorage system

Anchorage

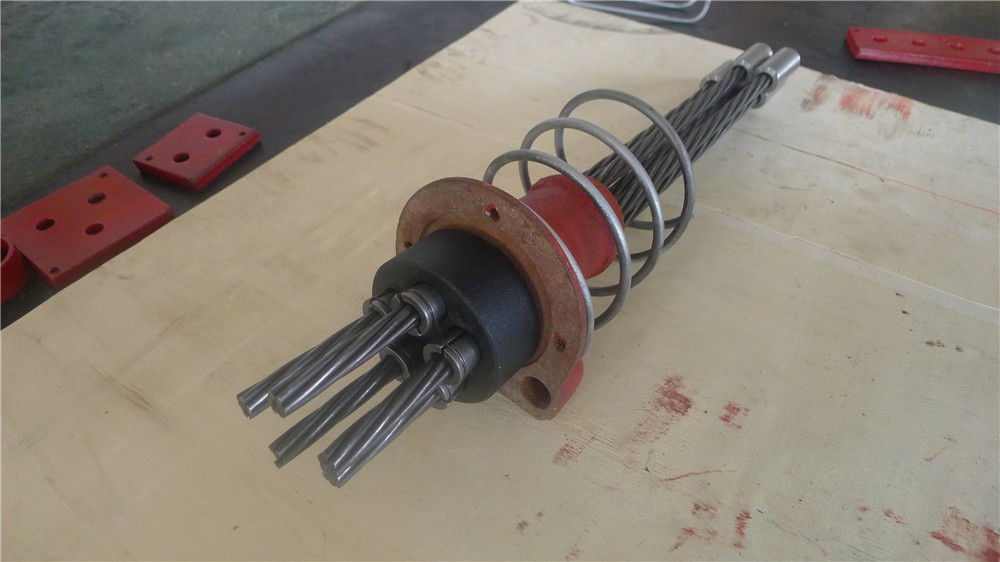

Stressing end anchorage system

Anchorage

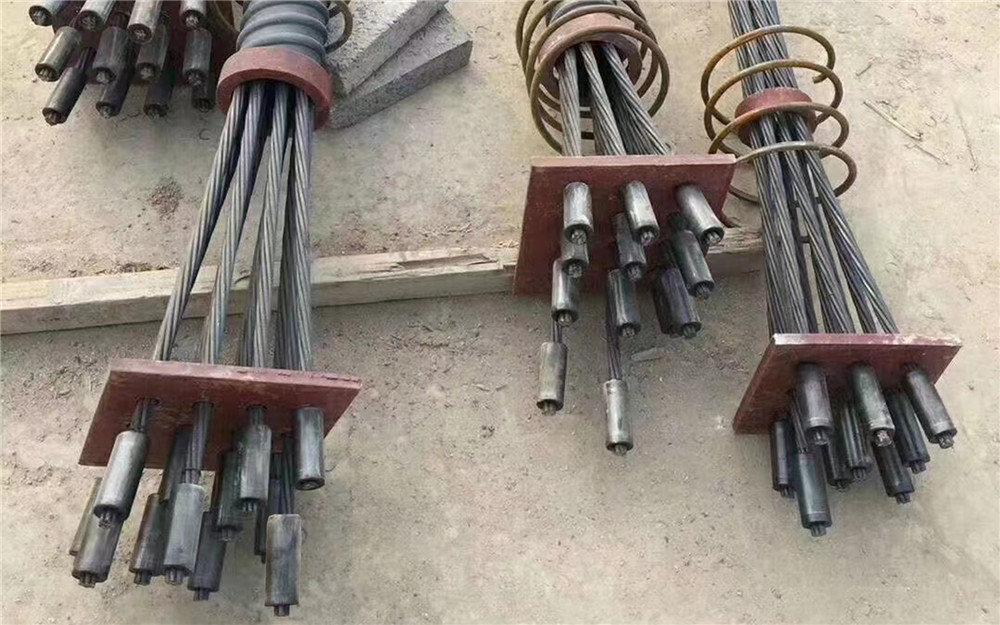

Dead end anchorage system

Anchorage

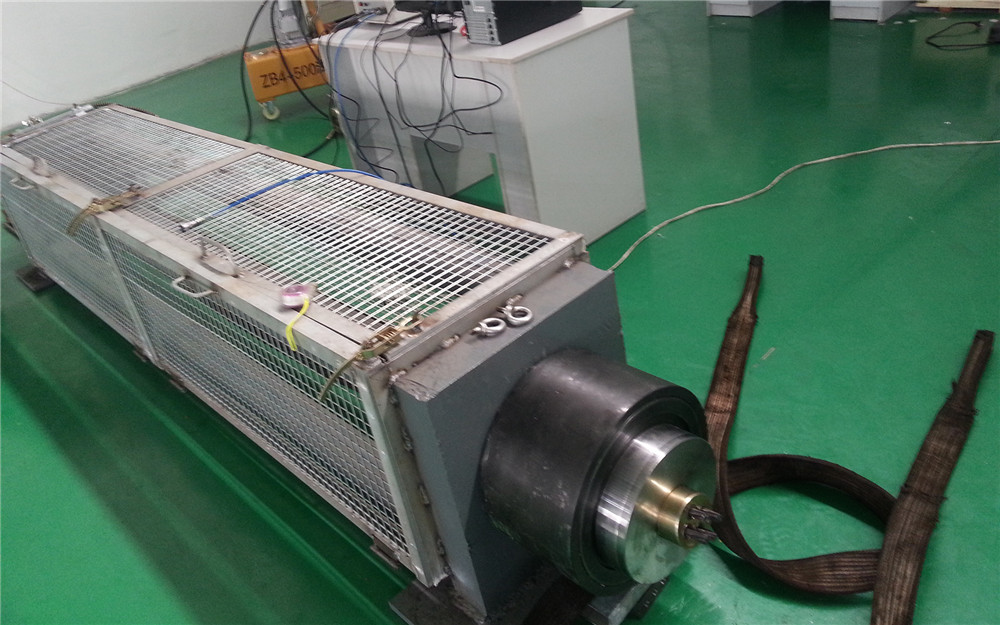

Static load test
