6.5 Mm Pc Wire

Prestressed steel wire is a kind of steel wire made of carbon steel wire material, and used in prestressed concrete structures.

High-strength, low-relaxation, supply in coil, large-length, low-consumption, spiral rib steel wire has strong bond with concrete.

There are three types, they are Plain PC wire, spiral rib PC wire, and indented PC wire.

According to the surface coating, prestressed concrete steel wire can be divided into uncoated prestressed steel wire,

prestressed epoxy resin coated steel wire and galvanized prestressed steel wire.

Inquire Now

ADVANTAGES

The primary purpose of prestressed concrete steel wire is to introduce compressive forces into concrete structures to counteract the tensile stresses that the structure will experience during its service life.

This is achieved through a process called prestressing. Prestressed concrete steel wire is used in a wide range of construction applications, including the construction of bridges, buildings, parking garages, dams, and more.

It is commonly used in precast concrete elements like beams, girders, and piles, as well as in cast-in-place concrete structures.

USE

Prestressed steel wire can be used in prestressed concrete utility poles, prestressed concrete hollow slabs, prestressed concrete sleepers, express railway prestressed concrete sleeper plates, prestressed concrete water pipes, and other components.

Prestressed concrete wire is primarily used in the construction industry for reinforcing concrete structures. It is a high-strength steel wire that is subjected to a process called prestressing, where it is placed under tension before being embedded in the concrete.

The main purpose of prestressed concrete wire is to counteract the tensile forces that occur in concrete structures. While concrete is strong in compression, it is relatively weak in tension. By introducing prestressed concrete wire, the tensile strength of the overall system is significantly increased.

Prestressed concrete wire is commonly used in the construction of bridges, high-rise buildings, parking structures, and other large-scale infrastructure projects. It allows for the construction of longer and more slender members, reduces the number of support columns needed, and improves overall structural performance.

SPECIFICATIONS

Type	Nominal Diameter, mm	Tensile Strength, Mpa	Standard

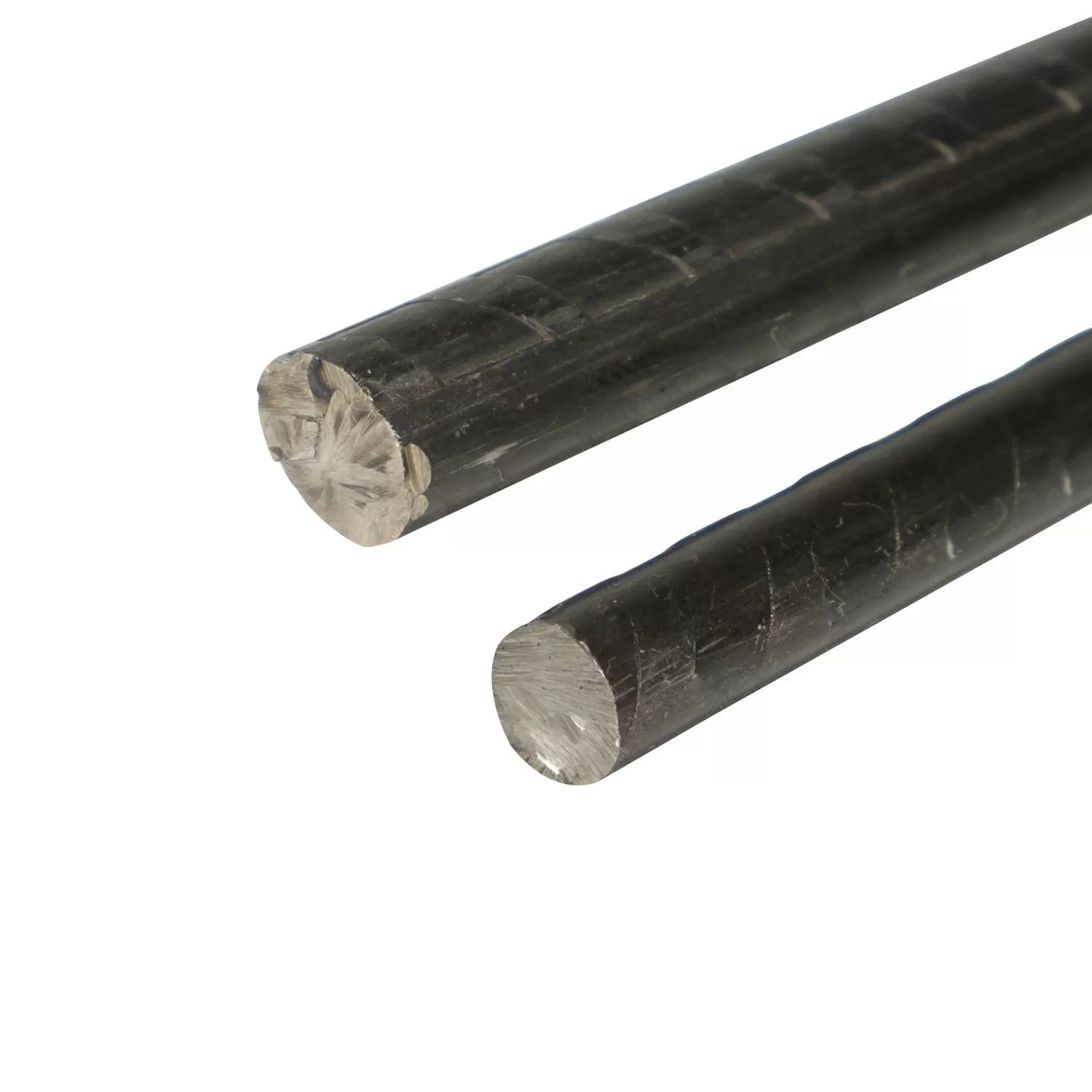

Plain PC Wire	6.5mm	1670Mpa 1770Mpa 1860Mpa	GB/T5223

Type	Nominal Diameter, mm	Tensile Strength, Mpa	Standard

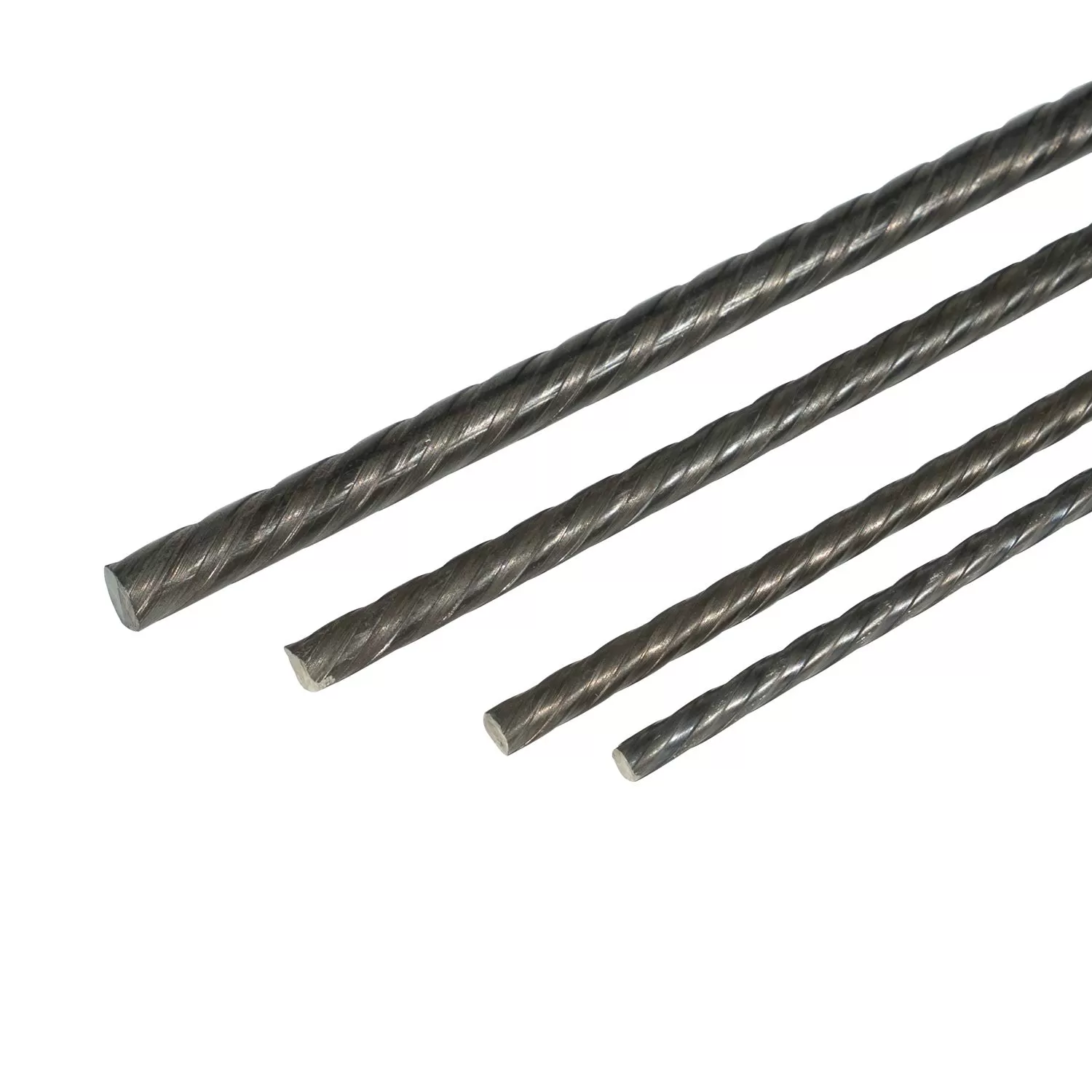

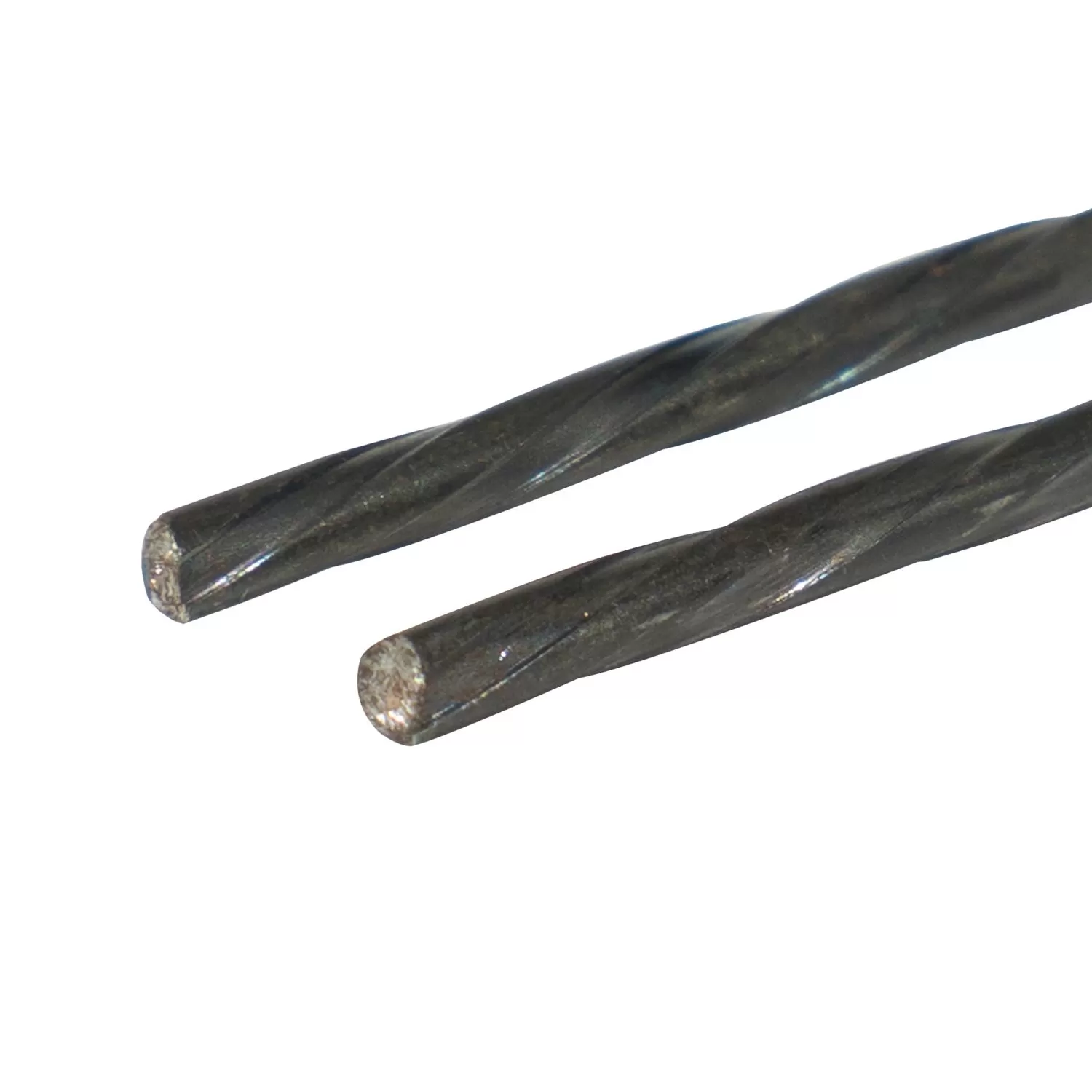

Spiral PC Wire	6.5mm	1670Mpa 1770Mpa 1860Mpa	GB/T5223

Type	Nominal Diameter, mm	Tensile Strength, Mpa	Standard

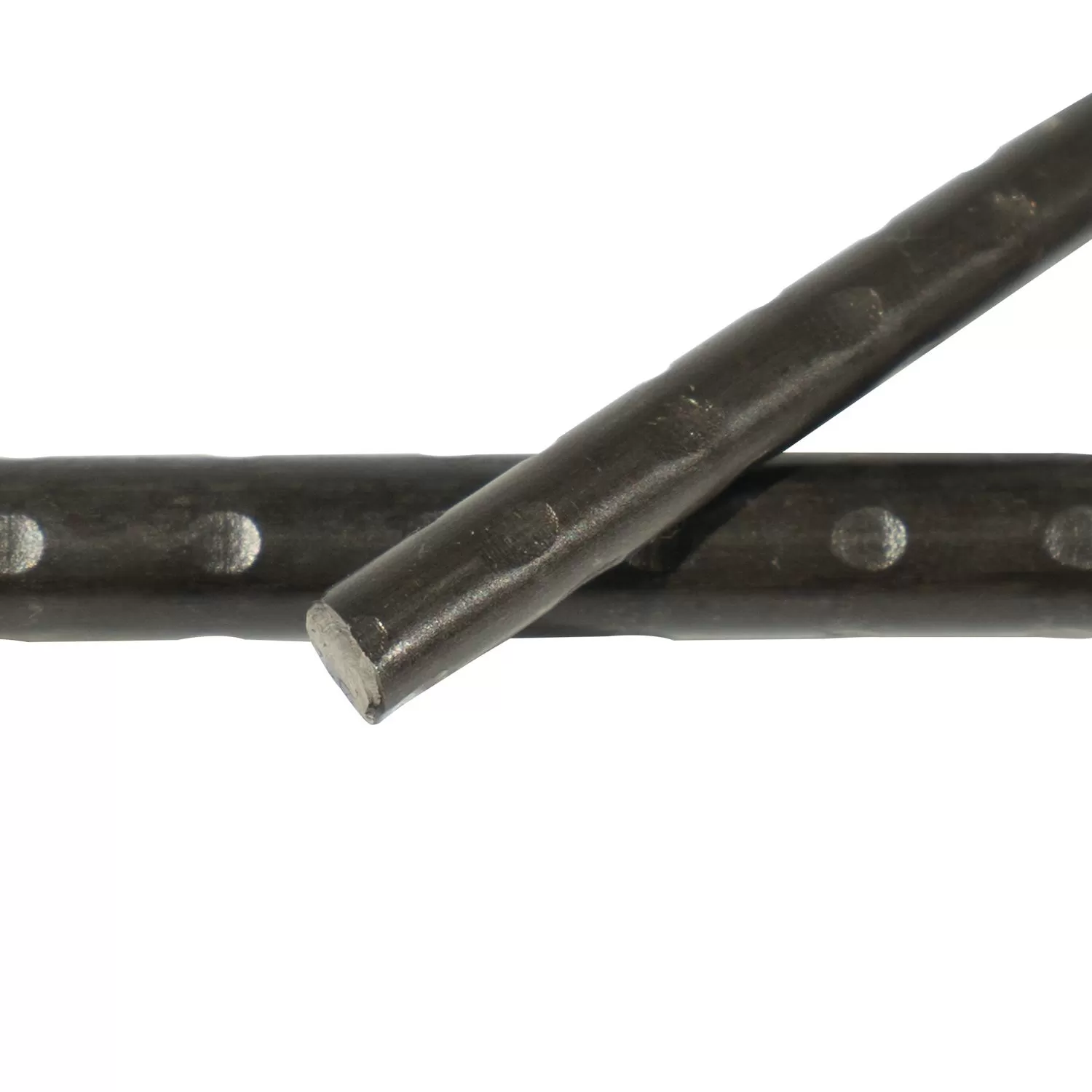

Indented PC Wire	6.5mm	1570Mpa 1620Mpa 1670Mpa 1770Mpa 1860Mpa	GB/T5223 ISO6934-2 ASTM A881 TIS95-2540 EN10138-2 BS5896 JISG3536 LNECE-452 SS141757 NEN3868 GOST7348 ABNT NBR7482 AS/NZS4672

PACKAGE

We support customized packaging ways.
