Prestressed Material

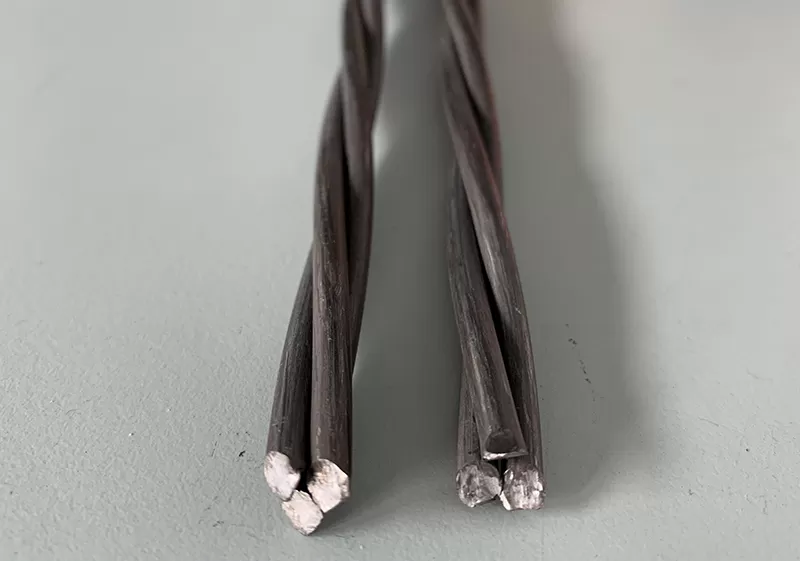

The wire rods used in the manufacture of 1x3 PC Strand are soddenised coils which are cold drawn and twisted into strand. The twisting is followed by a continuous stabilisation process. The strand is free from broken and cross-cracked wires. In accordance with the Chinese national standard GB/T5224, we offer a full range of strands with very low relaxation and strengths of 1860MPa, 1960MPa and 2160MPa according to customer requirements.
ADVANTAGES
-Primary advantages
Very low relaxation , high tensile strength
-Why should I buy this 1x3 PC Strand ?
We are the direct supplier of 1x3 PC Strand, the price is very competitive in the market.
-What makes this product different to other factory's 1x3 PC Strand?
Our 1x3 PC Strand has very low relaxation, and good straightness
Narrow tolerance range of wire diameter
High performance when the load is above 90% max load
Our package could be as per clients’ requirement.
USE

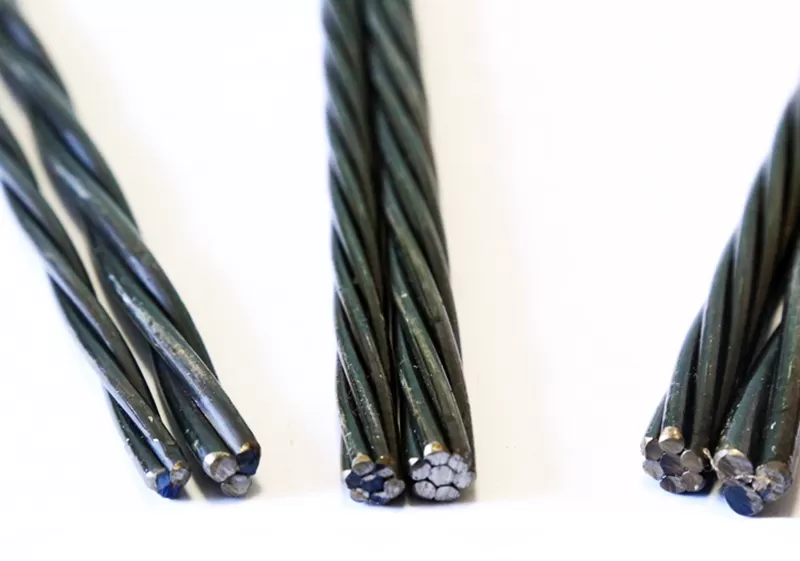

-Where can our 2- and 3- wire pc strand be used?
Pretensioned and posttensioned prestressed concrete construction.
Concrete products manufacture, such as concrete railway sleeper , precast beam , concrete pole/ concrete colum
SPECIFICATIONS
| Structure | Standard | Nominal diameter | Wire Diameter | Tolerance on Strand Diameter | Nominal Area of Section | Weight of strand | Tensile Strength, Rm | Minimum Breaking load,Fm | 0,2% proof force e, Fp0.2 | Elongation Lo=500mm, Agt | Curvative of strand | Lay Length |
| mm | mm | mm | (mm2) | (kg/1000m) | (N/mm2) | KN | KN | % | mm | mm | ||
| 1X2 | GB/T5224:2014 | 5.00 | 2.50 | +0.15,-0.05 | 9.82 | 77.1 | 1860 | 18.3 | 16.5 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 5.00 | 2.50 | +0.15,-0.05 | 9.82 | 77.1 | 1960 | 19.2 | 17.3 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 5.80 | 2.90 | +0.15,-0.05 | 13.20 | 104.0 | 1860 | 24.6 | 22.1 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 5.80 | 2.90 | +0.15,-0.05 | 13.20 | 104.0 | 1960 | 25.9 | 23.3 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 8.00 | 4.00 | +0.25,-0.10 | 25.10 | 197.0 | I860 | 46.7 | 42.0 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 8.00 | 4.00 | +0.25,-0.10 | 25.10 | 197.0 | 1960 | 49.2 | 44.3 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 10.00 | 5.00 | +0.25,-0.10 | 39.30 | 309.0 | 1860 | 73.1 | 65.8 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 10.00 | 5.00 | +0.25,-0.10 | 39.30 | 309.0 | 1960 | 77.0 | 69.3 | 3.5 | 25mm | (12-16)d |
| 1X2 | GB/T5224:2014 | 12.00 | 6.00 | +0.25,-0.10 | 56.50 | 444.0 | 1860 | 105.0 | 94.5 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 6.20 | 2.90 | +0.15,-0.05 | 19.80 | 155.0 | 1860 | 36.8 | 33.1 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 6.20 | 2.90 | +0.15,-0.05 | 19.80 | 155.0 | 1960 | 38.8 | 34.9 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 6.50 | 3.00 | +0.15,-0.05 | 21.20 | 166.0 | 1860 | 39.4 | 35.5 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 6.50 | 3.00 | +0.15,-0.05 | 21.20 | 166.0 | 1960 | 41.6 | 37.4 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 8.60 | 4.00 | +0.20.-0.10 | 37.70 | 296.0 | I860 | 70.1 | 63.I | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 8.60 | 4.00 | +0.20.-0.10 | 37.70 | 296.0 | 1960 | 73,9 | 66.5 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 8. 74 | 4.05 | +0.20.-0.10 | 38.60 | 303.0 | 1860 | 71.8 | 64.6 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 10.80 | 5.00 | +0.20.-0.10 | 58.90 | 462.0 | 1860 | 110.0 | 99.0 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 10.80 | 5.00 | +0.20.-0.10 | 58.90 | 462.0 | 1960 | 115.0 | 104.0 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 12. 90 | 6.00 | +0.20.-0.10 | 84.80 | 666.0 | 1860 | 158.0 | 142.0 | 3.5 | 25mm | (12-16)d |
| 1X3 | GB/T5224:2014 | 12. 90 | 6.00 | +0.20.-0.10 | 84.80 | 666.0 | 1960 | 166.0 | 149.0 | 3.5 | 25mm | (12-16)d |
| 1X3I | GB/T5224:2014 | 8. 74 | 4.05 | +0.20.-0.10 | 38.60 | 303.0 | 1860 | 71.8 | 64.6 | 3.5 | 25mm | (12-16)d |

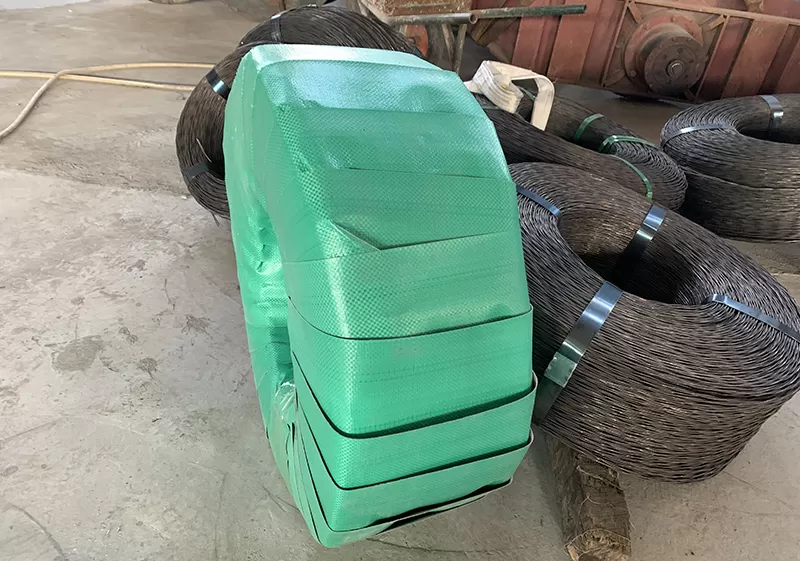

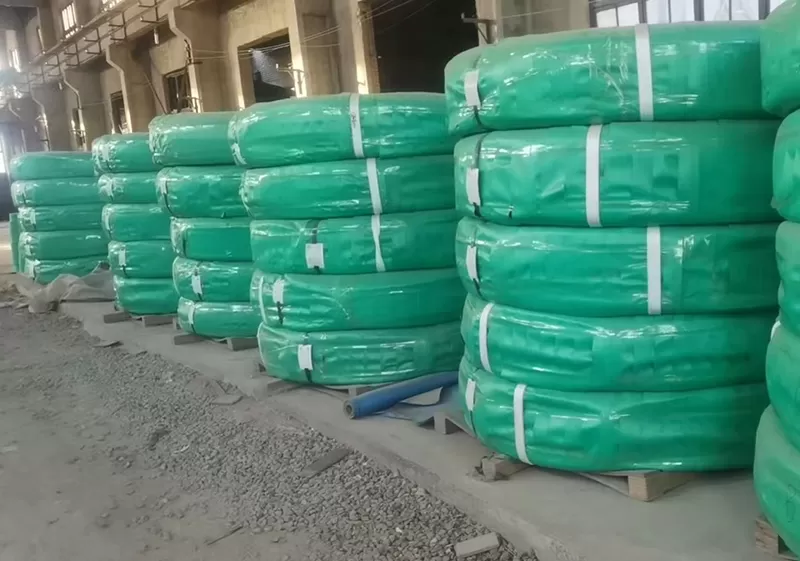

PACKAGE
As per clients’ requirement
