Prestressed Material

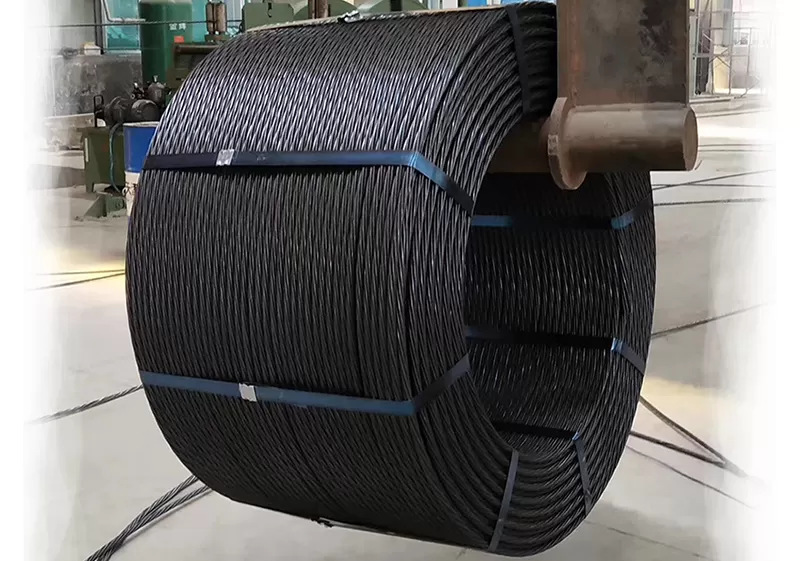

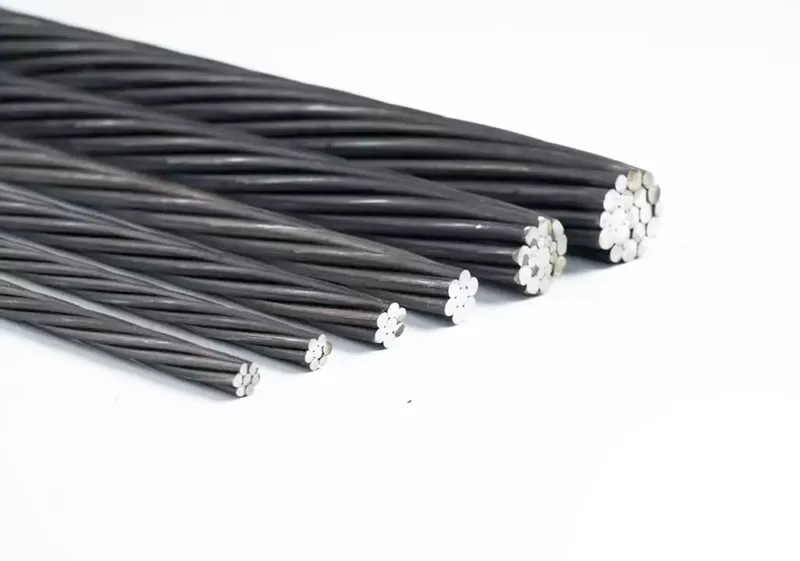

0.5 PC strand is seven-wire steel strand for prestressed concrete, the nominal diameter is 12.7 mm. This specification is produced in our factory as per standard ASTM A416 /A416-18, covers two grades of low-relaxation seven-wire steel strand for use in prestressed concrete construction. Grade 250KSI and Grade 270KSI .
SPECIFICATIONS
0.5 PC strand Breaking Strength
| Nominal Diameter of Strand, in. [mm] | Minimum Breaking Strength of Strand, lbf [kN] | Steel Area of Strand, in. 2 [mm 2 ] | Weight [Mass] of Strand lb/1000 ft [kg/1000 m] |
| Grade 250 [1725] | |||
| 0.500[12.7] | 36000[160] | 0.144[92.9] | 490[730] |
| Grade 270 [1860] | |||
| 0.500[12.7] | 41300[184] | 0.153[98.7] | 520[780] |
0.5 PC strand Yield Strength
| Nominal Diameter of Strand in. [mm] | Initial Load, lbf [kN] | Minimum Load at 1.0 % Extension, lbf [kN] |
| Grade 250 [1725] | ||
| 0.500[12.7] | 3600[16.0] | 32400[144.1] |
| Grade 270 [1860] | ||
| 0.500[12.7] | 4130[18.4] | 37170[165.3] |
0.5 PC strand Diameter Relation Between Center and Outer Wires
| Nominal Diameter of Strand, in. [mm] | Minimum Difference Between Center Wire Diameter and Diameter of Any Outer Wire, in. [mm] |
| Grade 250 [1725] | |
| 0.500[12.7] | 0.003[0.076] |
| Grade 270 [1860] | |
| 0.500[12.7] | 0.003[0.076] |
Certificate :
SGS

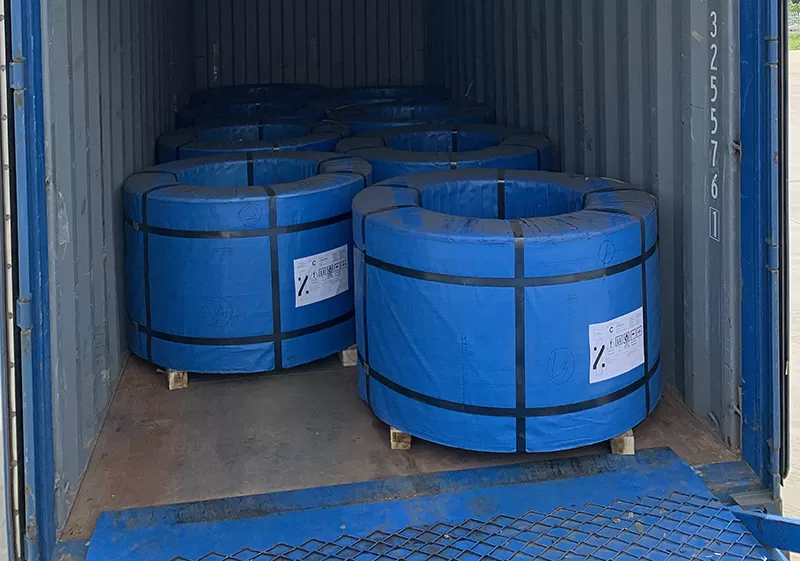

PACKAGE
As per client’s requirement.
