Domed Plate

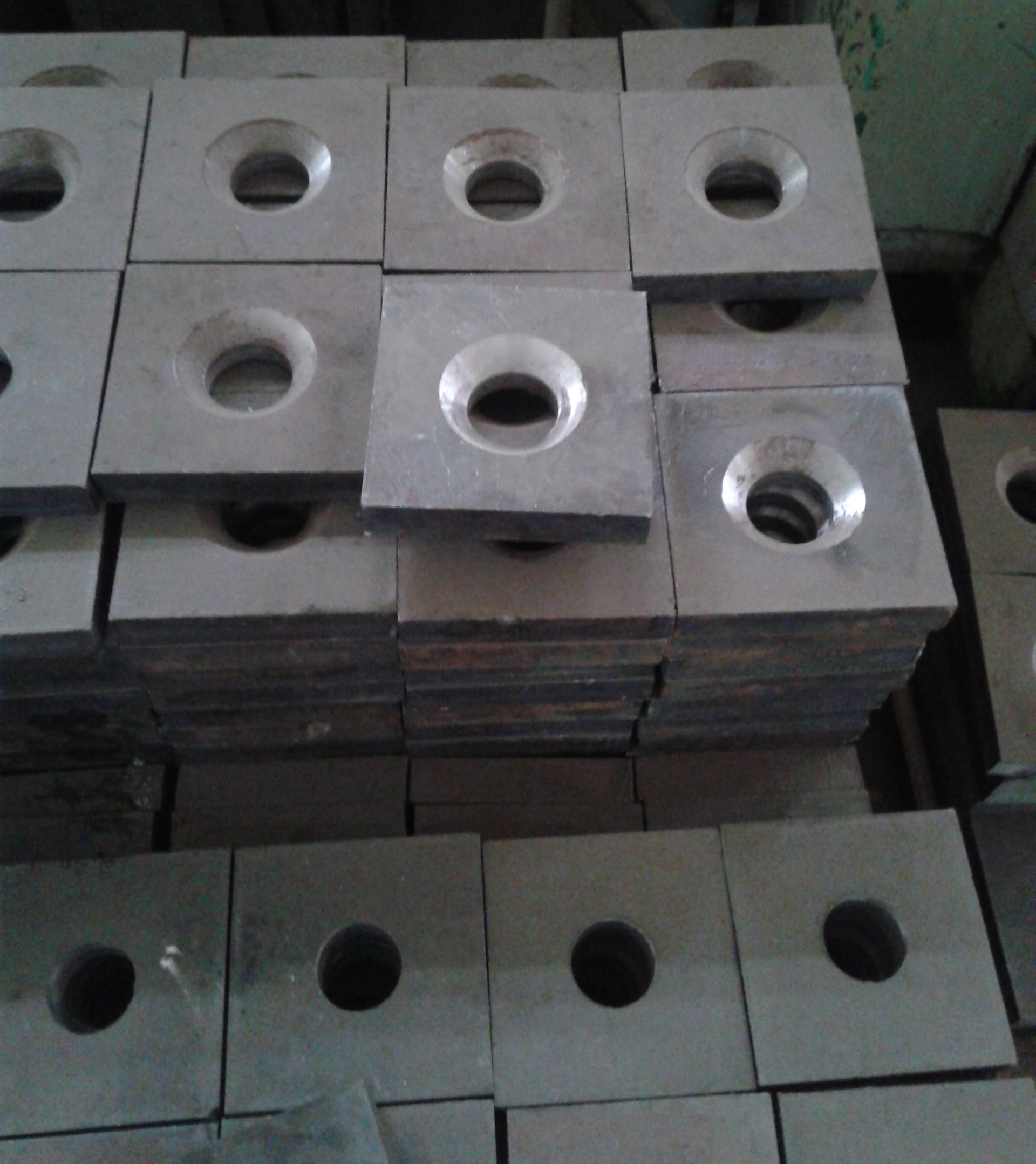

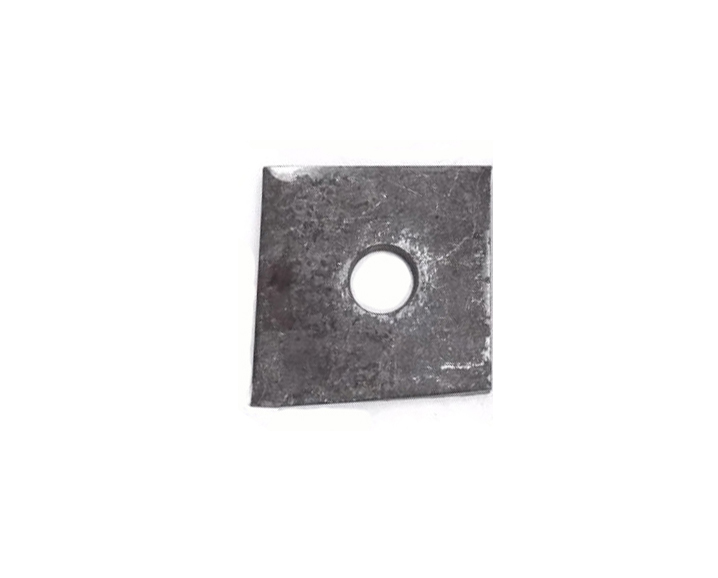

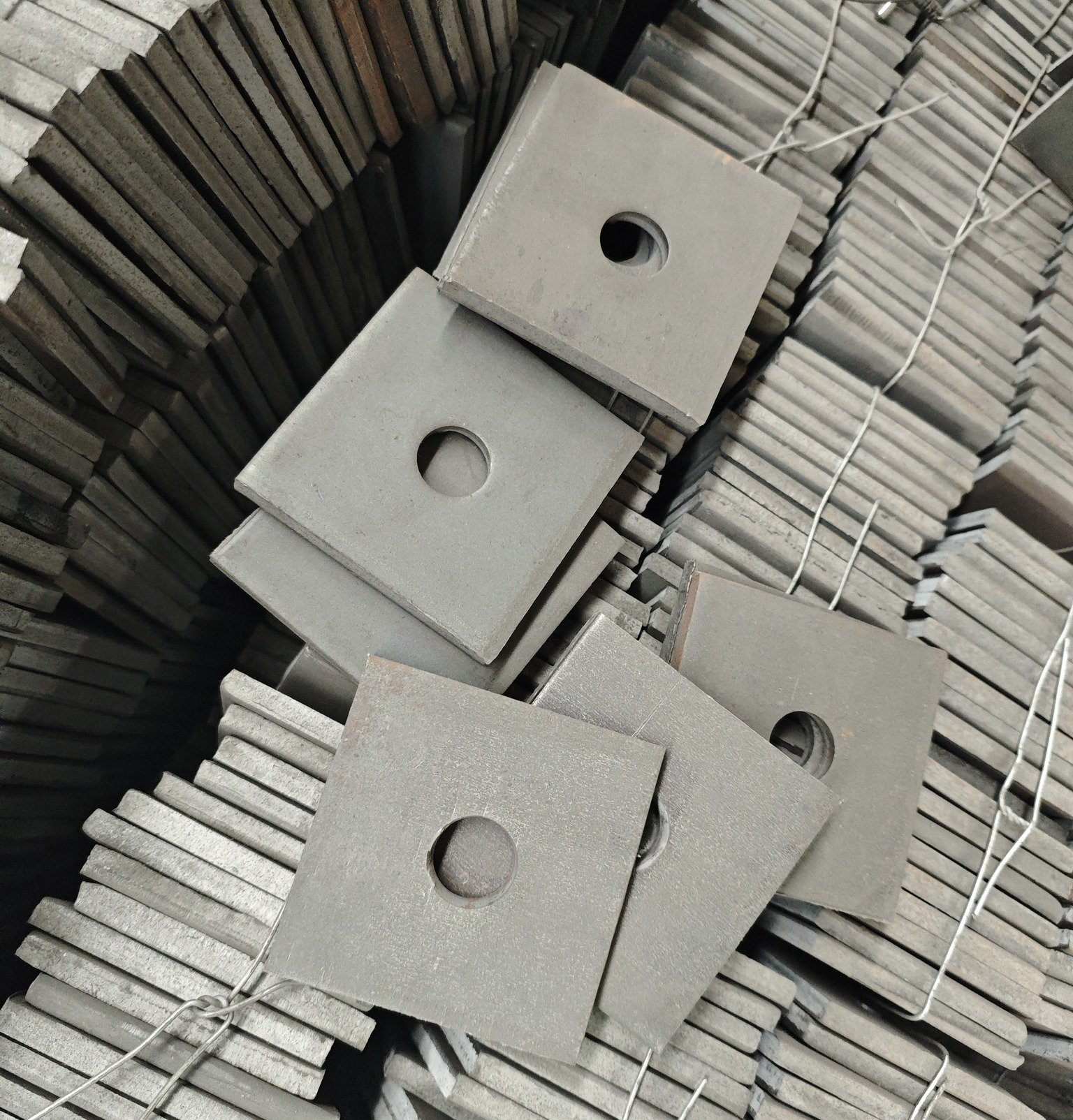

Finished-rolled threaded backing plate, also known as finished rolled threaded steel plate, are an important part of the finished rolled threaded steel accessories anchor. They are used together with finished rolled nuts and are the most used part in the project. Finished-rolled threaded backing plate are divided into flat plate, conical plate and spherical plate.

Inquire Now

ADVANTAGES

Finished-rolled threaded backing plate, material: q235. Commonly used plate sizes are 120*120*20mm, 120*120*22mm, 100*100*25, 100*100*22 mm, 100*100*20 mm, 130*130*25 mm, 130*130*22 mm, 130*130*20 mm, 140*140*24mm. Our company can process according to the requirements of related projects.

USE

Flat plate are often used for fixed ends, and conical plate are often used for tensioning ends. The size of finished-rolled threaded backing plate can also be processed according to the requirements of relevant construction.

SPECIFICATIONS

Product Name	Specifications	L/mm	d/mm	t/mm	Materials	Weight/kg
Fixed end nut plate	Φ20	100	24	10	Q235	0.785
Fixed end nut plate	Φ25	120	32	20	Q235	2
Fixed end nut plate	Φ32	140	40	20	Q235	2.66
Fixed end nut plate	Φ32	140	40	25	Q235	3.36
Fixed end nut plate	Φ32	120	40	25	Q235	2.4
Fixed end nut plate	Φ36	140	43	25	Q235	3.3
Fixed end nut plate	Φ36	150	43	30	Q235	5.1
Fixed end nut plate	Φ40	130	25	25	Q235	3.1
Fixed end nut plate	Φ40	140	25	25	Q235	3.3

PACKAGE

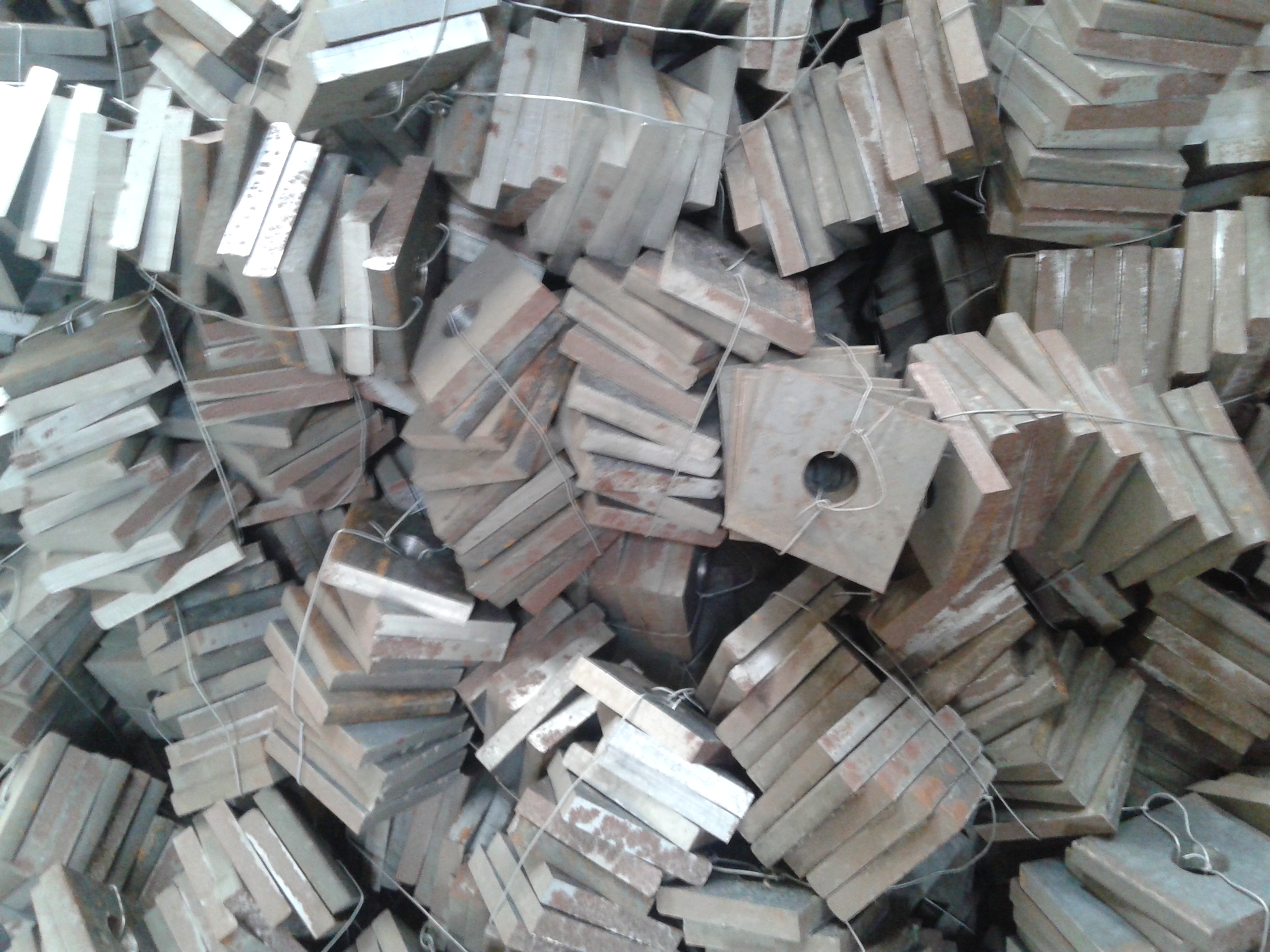

we have box packaging, and we also support customized packaging ways.
