What Are Cermet Tools?

Jul. 13, 2024

Cermet tools are advanced cutting tools made from a composite material consisting of ceramic and metallic components. The name "cermet" is derived from the combination of "ceramic" and "metal," highlighting the unique properties these tools possess. Cermet tools are known for their excellent wear resistance, high-temperature stability, and the ability to maintain a sharp cutting edge, making them ideal for a variety of machining applications.


1. Composition and Manufacturing


Cermet tools are typically composed of ceramic particles, such as titanium carbide (TiC) or titanium nitride (TiN), embedded in a metallic matrix, often made of nickel, cobalt, or molybdenum. The manufacturing process involves powder metallurgy techniques, where the ceramic and metallic powders are mixed, compacted, and sintered at high temperatures to form a dense and uniform material.

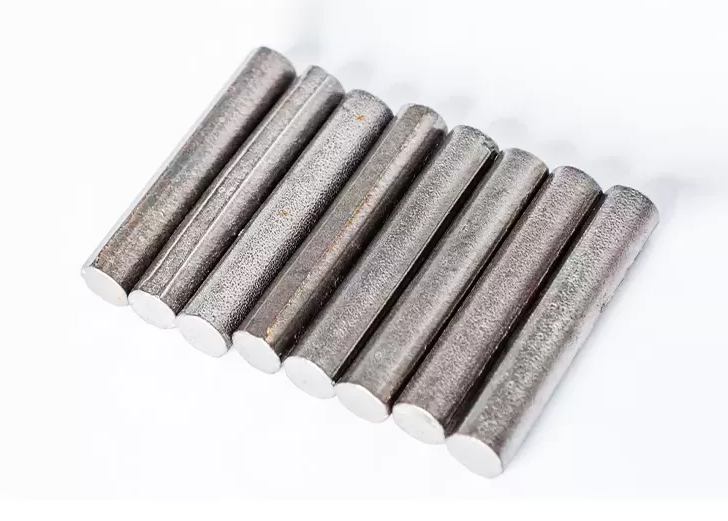

Cermet Rods

Cermet Rods

2. Key Properties


The combination of ceramic and metal in cermet tools provides a unique set of properties that make them highly effective in various machining operations:


Wear Resistance: The ceramic component in cermet tools offers exceptional hardness and wear resistance, allowing the tools to maintain their cutting edge for longer periods compared to conventional metal tools.

High-Temperature Stability: Cermet tools can withstand high temperatures without losing their strength or hardness, making them suitable for high-speed machining and operations involving significant heat generation.

Sharp Cutting Edges: The fine-grained structure of cermet tools enables the formation of sharp cutting edges, which are essential for precision machining and achieving high-quality surface finishes.

Chemical Stability: Cermet tools exhibit excellent chemical stability and resistance to oxidation, reducing the risk of tool degradation during machining processes.


3. Applications of Cermet Tools


Cermet tools are used in a wide range of machining applications due to their unique properties and performance advantages:


Turning and Milling: Cermet inserts are commonly used in turning and milling operations, particularly for finishing and semi-finishing applications where a high-quality surface finish is required.

Drilling: Cermet drills are employed for drilling hard and abrasive materials, providing superior tool life and precision.

Reaming: Cermet reamers are used for precision hole finishing, offering excellent dimensional accuracy and surface quality.

Gear Cutting: Cermet tools are utilized in gear cutting operations to achieve precise and clean cuts on gears and other intricate components.

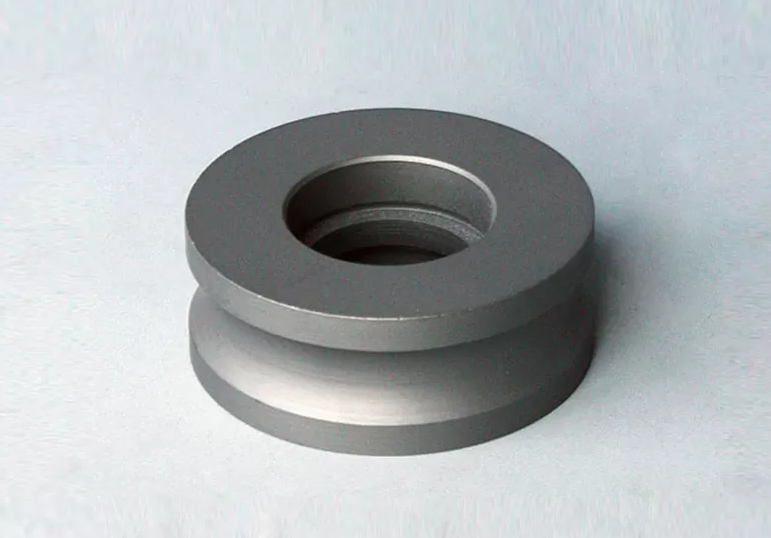

Precision Molds

Precision Molds

4. Advantages of Cermet Tools


Using cermet tools in machining operations offers several significant advantages:


Extended Tool Life: The exceptional wear resistance of cermet tools results in longer tool life, reducing the frequency of tool changes and downtime.

Improved Surface Finish: The sharp cutting edges and high-temperature stability of cermet tools contribute to superior surface finishes on machined components.

Higher Cutting Speeds: Cermet tools can operate at higher cutting speeds compared to conventional tools, increasing productivity and efficiency in machining processes.

Reduced Tool Costs: Although cermet tools may have a higher initial cost, their extended tool life and improved performance can lead to overall cost savings in the long run.


5. Questions and Answers about Cermet Tools


Q: What materials are commonly used in cermet tools?

A: Cermet tools typically use ceramic particles such as titanium carbide (TiC) or titanium nitride (TiN) embedded in a metallic matrix made of nickel, cobalt, or molybdenum.


Q: What are the main advantages of using cermet tools?

A: Cermet tools offer extended tool life, improved surface finish, higher cutting speeds, and reduced overall tool costs due to their wear resistance, high-temperature stability, and sharp cutting edges.


Q: In which machining applications are cermet tools most commonly used?

A: Cermet tools are widely used in turning, milling, drilling, reaming, and gear cutting operations, especially for finishing and semi-finishing applications requiring high-quality surface finishes.


Q: How do cermet tools compare to conventional metal tools?

A: Cermet tools outperform conventional metal tools in terms of wear resistance, high-temperature stability, and the ability to maintain sharp cutting edges, leading to longer tool life and improved machining performance.


Choosing the right cermet tools for your machining needs can significantly enhance your productivity and the quality of your finished products. By understanding their composition, properties, applications, and advantages, you can make informed decisions to optimize your machining operations.
