How to Choose Mining Roof Bolts?

Mining roof bolts are essential components in maintaining the stability and safety of underground mining operations. They are used to secure rock and prevent roof collapses, ensuring the safety of miners and equipment. Choosing the right mining roof bolts is crucial for operational safety and efficiency. This guide will help you understand the different types of mining roof bolts, the factors to consider when choosing them, and how to select the best option for your mining project.

1. Understanding the Importance of Mining Roof Bolts

Roof bolting is a critical safety measure in underground mining. Roof bolts are used to reinforce the rock above mine tunnels, preventing dangerous collapses. They are typically installed in drilled holes in the roof and help to hold the rock in place, distributing stress and reducing the risk of rock falls. Effective roof bolting systems improve mine safety, reduce downtime, and enhance productivity. Selecting the right type of bolt for specific conditions is key to achieving these safety and efficiency benefits.

The primary functions of mining roof bolts include:

• Stabilizing the Roof: Roof bolts keep the rock above the tunnel from shifting, preventing rock falls and collapses.

• Improving Worker Safety: Properly installed bolts reduce the risk of injury or fatalities from roof collapses.

• Minimizing Operational Disruptions: Ensuring a stable roof prevents delays caused by roof falls, which can halt operations.




2. Types of Mining Roof Bolts

Mining roof bolts come in several different types, each suited to specific mining conditions and rock formations. Understanding the different types of roof bolts is essential when selecting the best option for your mining operation:

1. Fully Grouted Bolts

Fully grouted bolts are the most commonly used type in mining. They consist of a steel bolt coated with grout, which is injected into the hole to secure the bolt in place. These bolts are ideal for rock formations that require complete bonding between the bolt and the surrounding rock. They provide strong roof support and can be used in a wide range of mining conditions.

Mining Roof Bolts

2. Resin Bolts

Resin bolts use a resin capsule to bond the bolt to the surrounding rock. These bolts are designed to provide superior load-bearing capacity and are commonly used in mines with unstable rock formations. The resin hardens when it reacts with moisture, creating a strong bond between the bolt and the rock.

3. Self-Drilling Bolts

Self-drilling roof bolts are designed for use in hard rock formations where it’s difficult to drill holes. These bolts are equipped with a drill bit that allows them to drill their own hole as they are being installed. They provide quick and easy installation in tough conditions, making them ideal for deep or difficult-to-access mining areas.

4. Swellex Bolts

Swellex bolts are inflatable steel tube bolts that expand when inflated with water, creating a tight bond with the rock. These bolts are used in mines where ground conditions change frequently or where extra support is needed. Swellex bolts are highly flexible and can be adjusted to accommodate varying rock conditions.

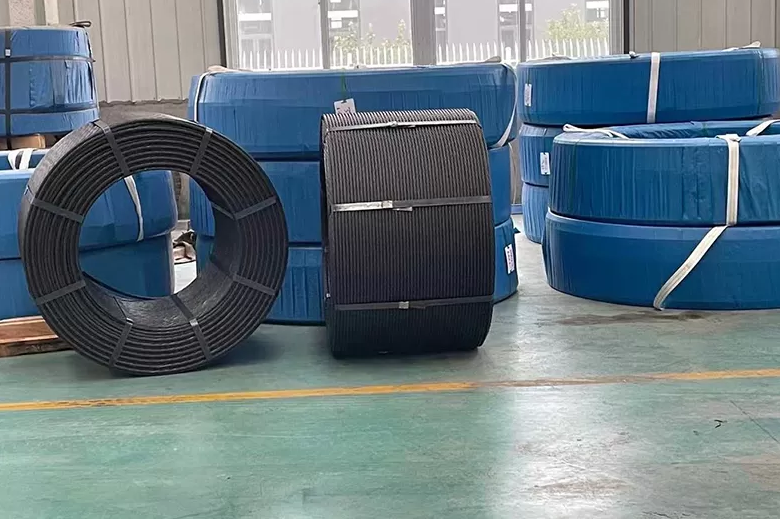

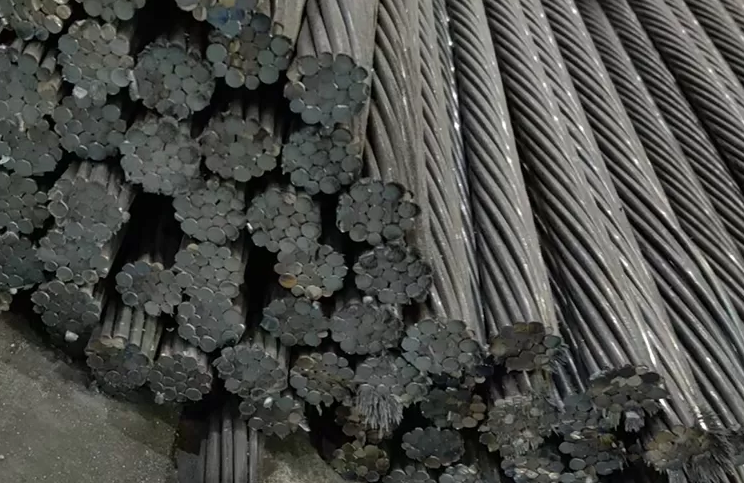

5. Cable Bolts

Cable bolts consist of high-strength steel cables that are inserted into pre-drilled holes in the roof. The cable is tensioned to provide a stronger support system over a wider area. Cable bolts are typically used in large underground mining operations where high tensile strength is required to stabilize the roof.

3. Factors to Consider When Choosing Mining Roof Bolts

Choosing the right mining roof bolts for your project involves considering a range of factors. Below are the key considerations to keep in mind:

1. Rock Type and Geotechnical Conditions

The type of rock and the overall stability of the geotechnical environment are the most important factors in determining the right roof bolts for your mine. Soft or fractured rock may require fully grouted bolts or resin bolts, while harder rock formations may need self-drilling or cable bolts for better stability. Conducting a geotechnical analysis to assess rock conditions will help you choose the appropriate roof bolting system.

2. Bolt Length and Diameter

The length and diameter of the roof bolt should match the depth and size of the hole being drilled. Too long or too short a bolt may result in inadequate support or uneven load distribution. The diameter should also be sufficient to hold the weight of the rock above. Typically, bolts range from 1.5 meters to 3 meters in length, with diameters ranging from 16 mm to 32 mm, depending on the required strength.

3. Load-Bearing Capacity

The load-bearing capacity of the roof bolt is crucial to its ability to support the rock. Roof bolts need to withstand the tension and shear forces exerted by the rock mass above. Higher-capacity bolts are needed for mines with large, unstable rock formations or when extra support is required to prevent roof collapse.

4. Corrosion Resistance

Mining environments are harsh, with exposure to moisture, chemicals, and other elements that can cause corrosion. Choosing roof bolts made from corrosion-resistant materials, such as galvanized steel or stainless steel, is essential to ensure the bolts last and perform effectively throughout the life of the mine.

5. Installation and Maintenance Considerations

Ease of installation and maintenance should be factored into your decision. Some roof bolts, such as self-drilling bolts, allow for quicker and easier installation, while others may require more specialized equipment and procedures. Consider the time and resources available for installation, as well as the long-term maintenance needs of the system.

6. Cost vs. Performance

While cost is always a consideration, it is essential not to compromise on safety and performance. Inexpensive roof bolts may not provide the required load-bearing capacity or longevity, potentially leading to costly roof collapses or repairs. Consider the total cost of ownership, including installation, maintenance, and long-term performance, to make the most cost-effective choice.

Mining Roof Bolts

4. Benefits of High-Quality Mining Roof Bolts

Investing in high-quality mining roof bolts offers several key benefits:

• Enhanced Safety: High-quality bolts ensure stable roof support, reducing the risk of roof collapses and improving worker safety.

• Long-Term Durability: Quality roof bolts are resistant to corrosion and wear, ensuring that the bolting system remains effective throughout the life of the mine.

• Reduced Maintenance Costs: Properly selected roof bolts require less frequent maintenance, reducing the overall cost of mine operations.

• Increased Productivity: With a stable roof and fewer disruptions caused by rock falls, mining operations can run more smoothly and efficiently.

5. Frequently Asked Questions (FAQs)

1. How do I know which type of roof bolt is best for my mine?

The best type of roof bolt for your mine depends on the geotechnical conditions of the rock, the depth of the mine, and the specific safety requirements. Consult with a mining engineer or geotechnical expert to perform an analysis of the rock mass and determine the most suitable bolting system.

2. Can mining roof bolts be reused?

Mining roof bolts are typically not designed for reuse, especially in applications where high-stress loads are involved. Once a bolt has been installed and subjected to load, it may lose its integrity and effectiveness. It is generally recommended to replace bolts during mine maintenance or when any signs of wear are detected.

3. How often should mining roof bolts be inspected?

Mining roof bolts should be regularly inspected as part of mine safety protocols. The frequency of inspections will depend on the conditions of the mine, but it is generally recommended to inspect roof bolts at least every 6 months, or more frequently if there are signs of shifting, corrosion, or wear.

4. Can roof bolts be installed in all types of rock?

Roof bolts can be installed in most types of rock, but the installation method and type of bolt will vary based on the rock’s characteristics. For example, soft rock may require fully grouted or resin bolts, while hard rock may be better suited to self-drilling or cable bolts.
