Guide to Choosing PC Strand

Pre-stressed concrete (PC) strand is a vital component in the construction industry, commonly used for reinforcing concrete structures such as bridges, buildings, and highways. Selecting the right PC strand is crucial to ensure the structural integrity, durability, and performance of concrete elements. Here is a comprehensive guide to help you choose the most suitable PC strand for your construction project:

1. Understand PC Strand Properties:

PC strands are made from high-strength steel wires twisted together to form a helical strand. When embedded in concrete, PC strands provide tensile strength and help counteract the forces of compression. Key properties to consider include:

• Tensile Strength: The maximum stress a PC strand can withstand before breaking.

• Diameter: The diameter of the individual wires and the overall diameter of the PC strand.

• Elongation: The percentage increase in length of the PC strand under tension.

• Corrosion Resistance: The ability of the PC strand to resist corrosion, especially in harsh environments.

• Coating: Some PC strands are coated with epoxy or zinc to enhance corrosion resistance and bonding with concrete.

2. Determine Project Requirements:

Assess the specific requirements of your construction project to determine the type and specifications of PC strand needed. Consider factors such as:

• Design Load: The anticipated loads and stresses that the concrete structure will be subjected to.

• Environmental Conditions: The exposure to moisture, chemicals, temperature variations, and other environmental factors that may affect the performance of the PC strand.

• Concrete Mix Design: The type and strength of concrete being used, as well as any special requirements for pre-stressing.

• Construction Method: The installation method and requirements for anchoring, tensioning, and grouting the PC strand.

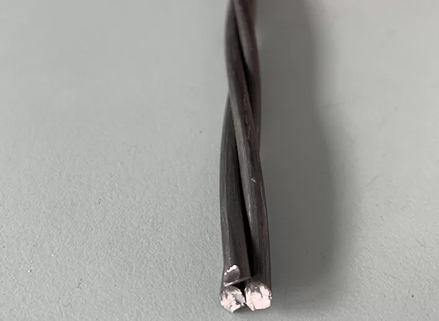

Three-Wire PC Strand

3. Choose the Right Grade:

PC strands are available in different grades, typically designated by their tensile strength. Common grades include 270 ksi, 250 ksi, and 270 ksi low-relaxation. Select the grade of PC strand that meets the design requirements of your project while considering factors such as cost and availability.

4. Consider Coating and Protection:

Depending on the environmental conditions and durability requirements of your project, you may choose PC strands with protective coatings or treatments. Epoxy-coated or galvanized PC strands offer enhanced corrosion resistance and longevity, particularly in aggressive environments such as coastal areas or industrial settings.

5. Verify Compliance with Standards:

Ensure that the PC strand manufacturer complies with relevant industry standards and specifications, such as ASTM A416/A416M for steel strand, ASTM A884/A884M for epoxy-coated steel strand, and ASTM A1094/A1094M for galvanized steel strand. Certification and testing reports from reputable third-party laboratories can provide assurance of quality and performance.

6. Evaluate Supplier Reputation:

Choose a reputable and experienced supplier or manufacturer of PC strand with a track record of delivering high-quality products and excellent customer service. Consider factors such as product availability, lead times, technical support, and after-sales service when selecting a supplier.

7. Review Cost and Budget:

Compare the cost of different PC strands while considering the overall budget and long-term cost implications of your construction project. Balance the upfront cost of the PC strand with factors such as durability, performance, and lifecycle costs to make an informed decision.

By following this guide and considering the key factors outlined above, you can choose the right PC strand that meets the specific requirements and performance criteria of your construction project, ensuring the structural integrity and longevity of concrete elements.
