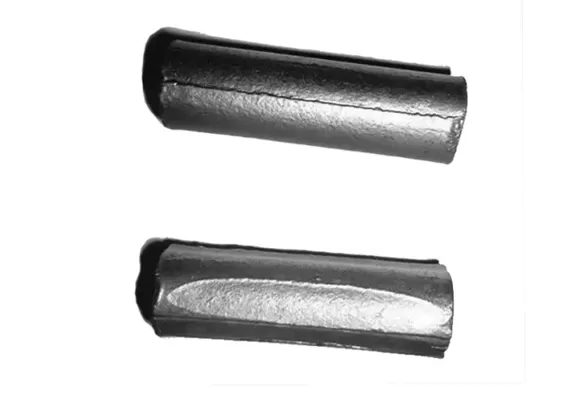

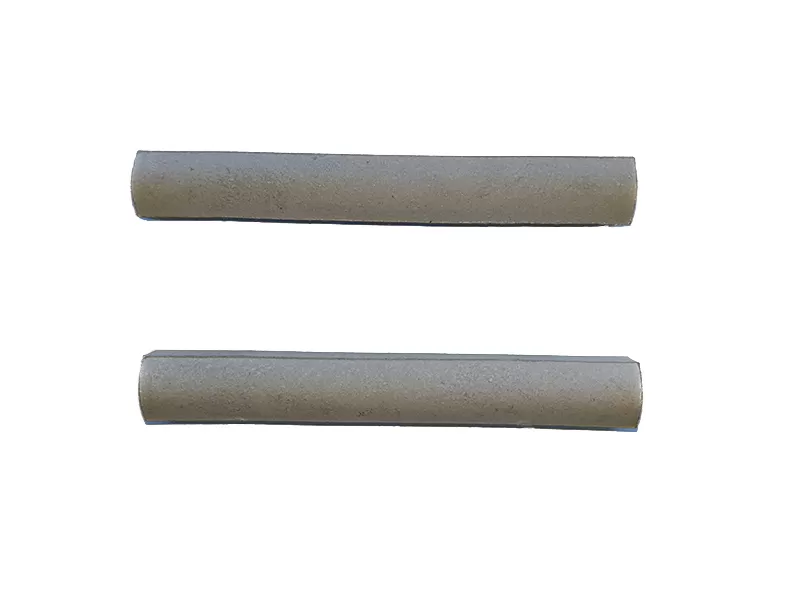

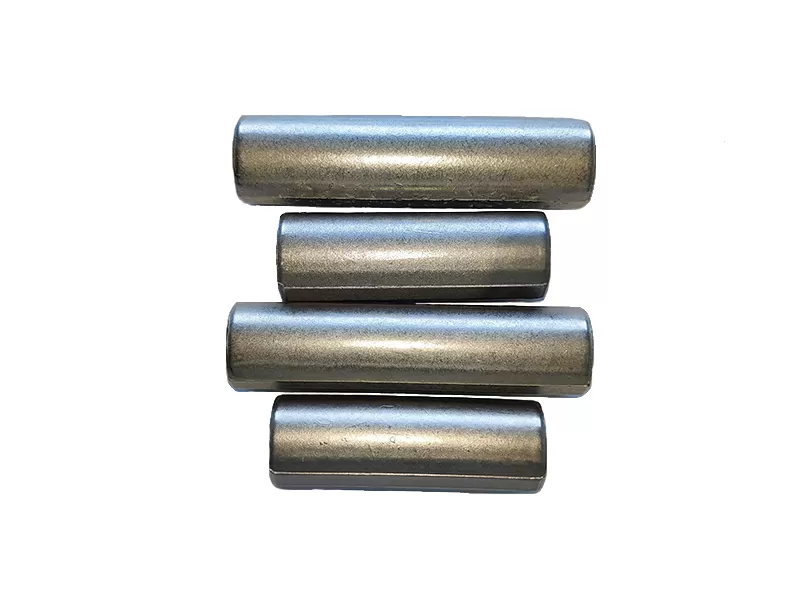

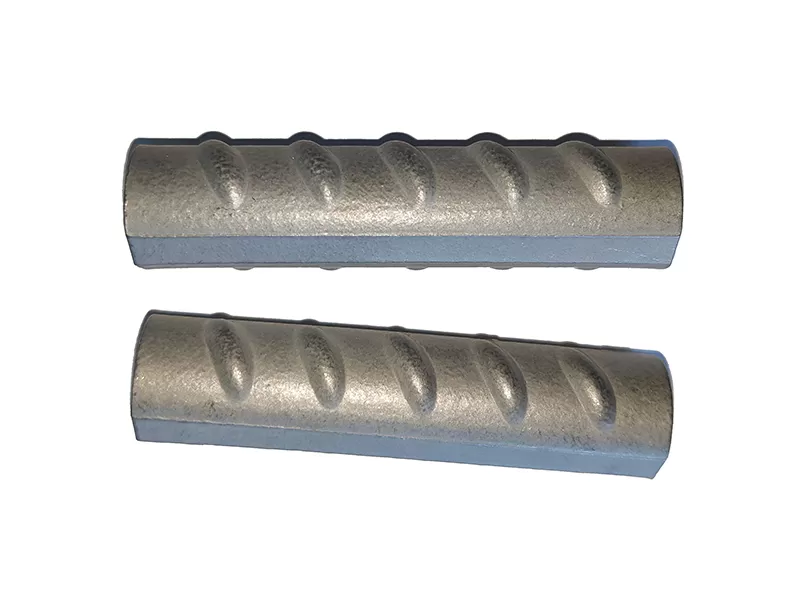

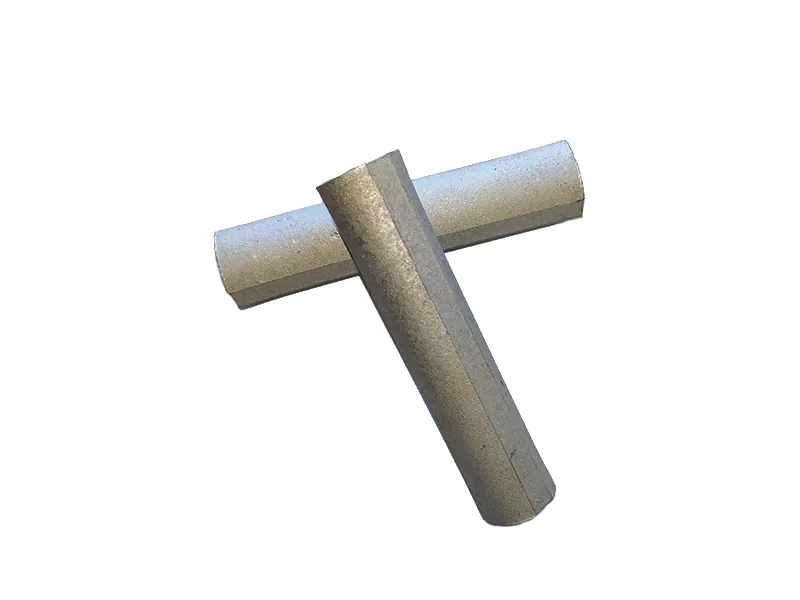

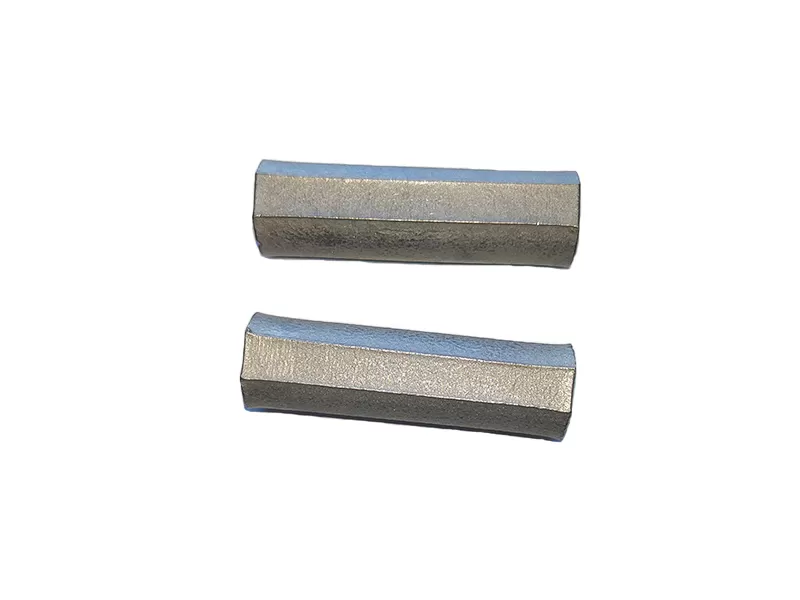

Titanium Carbide Rod

A Titanium Carbide Rod is a steel bonded alloy and could be a Titanium Carbide Insert used in a crushing hammer. Titanium carbide (TiC) rods are solid components made from titanium carbide material, known for their extreme hardness, high melting point, and excellent wear resistance. These rods are used in various industrial applications, particularly where high durability and resistance to wear are required.

Inquire Now

ADVANTAGES

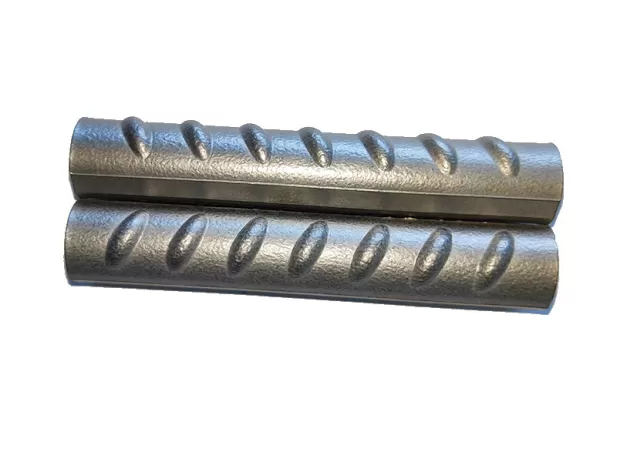

We have grade GB10, GB20, TM52, and TM60 Titanium Carbide Rods available, this is a new type of composite material prepared by powder metallurgy method with high manganese steel as the bonding phase and refractory metal carbide - titanium carbide as the hard phase. Its performance characteristics are as follows:

1. Good weldability and castability. The steel bonded alloy matrix is a type of high manganese steel, which exists as a single austenite phase at room temperature and has high strength, which is beneficial for improving the resistance to thermal stress during casting. It can be welded with ordinary high manganese steel electrodes or connected to the substrate through casting, which is simple to operate and easy to produce, and can reduce manufacturing costs and shorten production cycles.

2. High hardness and wear resistance. A large amount of refractory metal carbides (titanium carbide) are dispersed in steel bonded alloys, which have high hardness; At the same time, the matrix is high manganese steel with work hardening characteristics, which greatly improves the wear resistance of the product.

3. Excellent cost-effectiveness. Compared with tungsten cobalt hard alloy, steel bonded alloy has a low density (about 6.0g/cm3, which is 40% of tungsten cobalt hard alloy) and has a good cost-effectiveness advantage.

Titanium Carbide Rod has their own unique comprehensive performance advantages due to their unique performance characteristics. This excellent comprehensive performance has broad application prospects in industries such as impact and crushing tools, mining, cement, and construction.

USE

Cutting Tools:

▷ Titanium rod is used in the manufacture of high-performance cutting tools for machining hard materials.

▷ The hardness and wear resistance of TiC make it ideal for drill bits, milling cutters, and other cutting tools.

Wear Parts:

▷ Employed in various industrial wear parts that are subjected to high levels of abrasion and wear.

▷ Common in industries such as mining, metalworking, and construction.

Cermets:

▷ TiC rods can be used as a component in cermet materials, which combine the properties of ceramics and metals.

▷ Suitable for applications that require a combination of high hardness and toughness.

Coatings:

▷ Used as a precursor for creating wear-resistant coatings on metal surfaces.

▷ TiC coatings enhance the durability and lifespan of components exposed to high wear and corrosion.

Abrasives:

▷ Utilized in abrasive applications for grinding and polishing hard materials, such as metals and ceramics.

Electrodes:

▷ Used in electrical discharge machining (EDM) electrodes due to their conductivity and wear resistance.

▷ Suitable for electrical contacts in harsh environments.

Armor and Protective Gear:

▷ Employed in the manufacture of lightweight, high-hardness armor for personal and vehicle protection.

SPECIFICATIONS

Property	Specification
Material Composition	TiC (Titanium Carbide)
Density	4.93 g/cm³
Hardness	9-9.5 Mohs scale
Melting Point	~3,160°C (5,720°F)
Thermal Conductivity	21 W/m·K
Electrical Conductivity	1.0 - 1.8 × 10^6 S/m
Compressive Strength	2,500 MPa
Flexural Strength	500 MPa
Young's Modulus	450 GPa
Fracture Toughness	5.2 MPa·m^1/2
Coefficient of Thermal Expansion	7.74 × 10^-6 /K
Oxidation Resistance	Good up to 500°C (932°F)
Chemical Stability	Resistant to acids and alkalis
Standard Rod Dimensions	Diameter: 1mm to 50mm; Length: 10mm to 300mm
Surface Finish	As sintered, ground, or polished
Applications	Cutting tools, wear parts, cermets, coatings, abrasives, electrodes, armor
