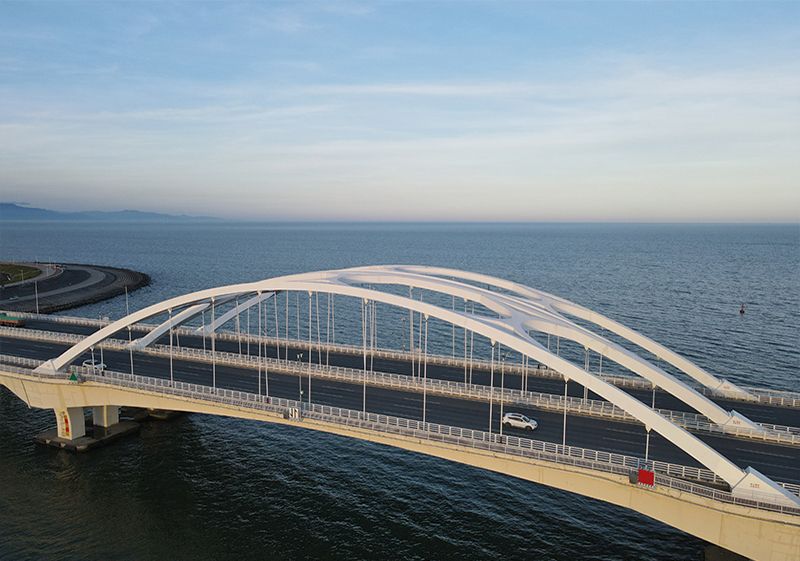

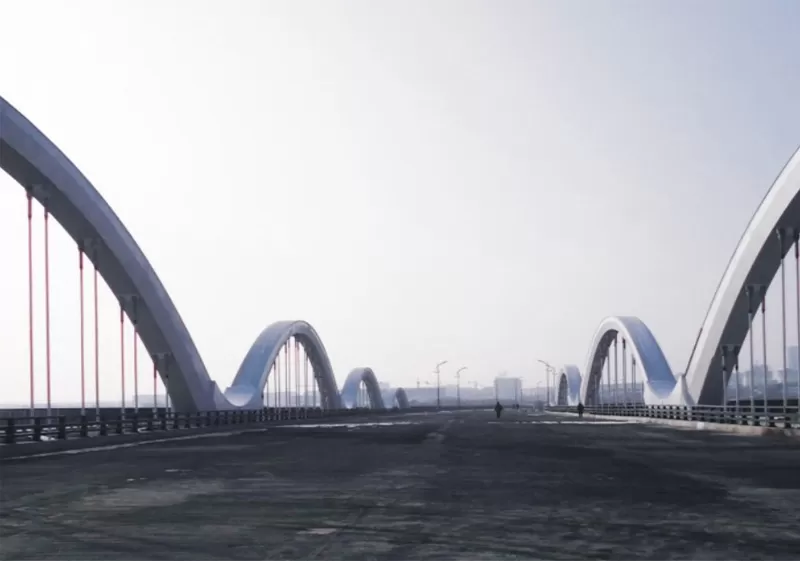

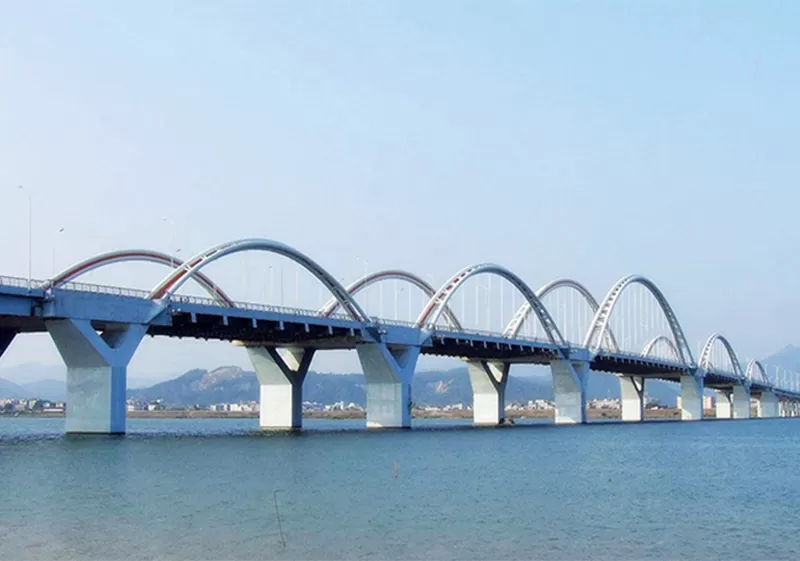

Arch Bridge Cable System

Arch bridges have long been the main form of large-span bridges, characterized by their beautiful appearance, large span capacity, aesthetics, economy, and minimal interference with traffic during construction.

Classification of arch bridge cables:

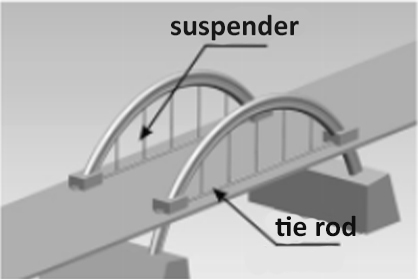

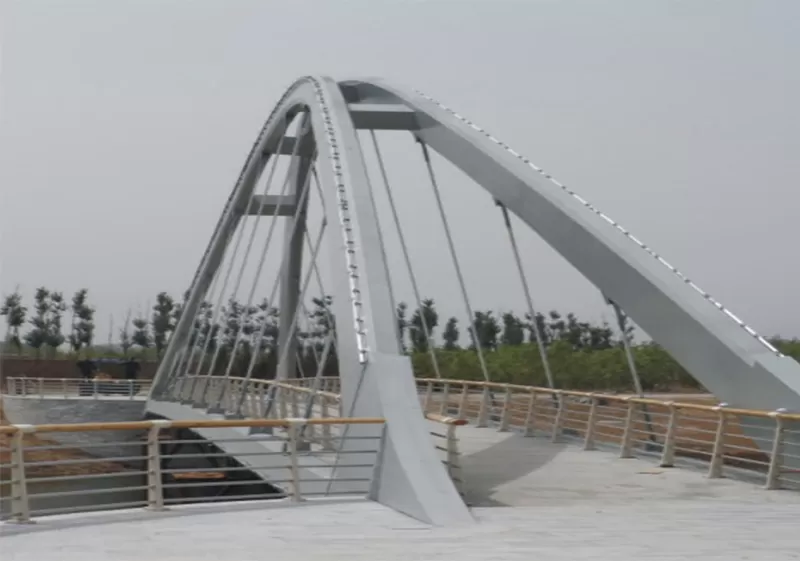

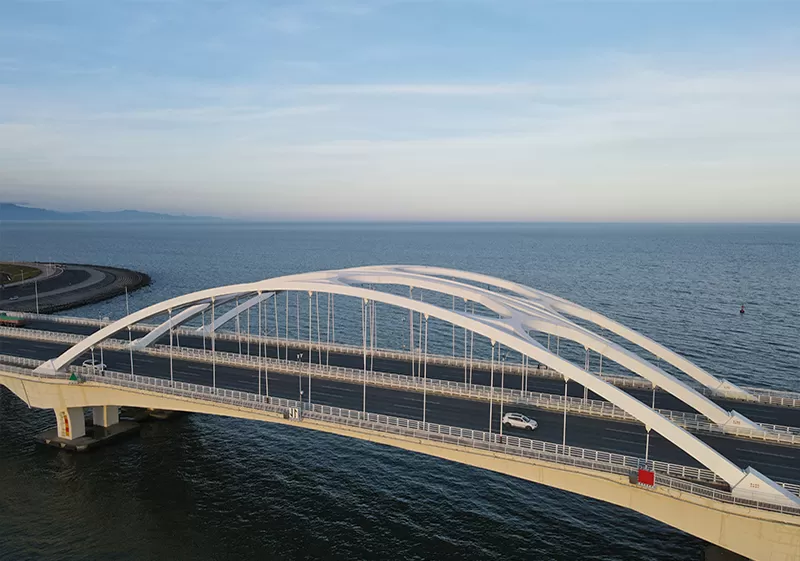

The tension cables on arch bridges can be divided into two categories: vertical suspension rods and horizontal tie rods.

Two types of cables play different roles in arch bridges, with the suspension rod vertically placed to withstand vertical forces and the tie rod horizontally placed to withstand horizontal tension.

Inquire Now

ADVANTAGES

Parallel steel wire suspender is a new type of arch bridge hanger system with multiple anti-corrosion, new waterproof devices and steerable spherical support devices.

It solves the problems of short-term cracking of the HDPE sheath of the cable body, water ingress at the lower end and deformation of the short hanger, thereby improving the safety and durability of the hanger.

Clip-type stranded wire tie rod is a new type of tie cable system, which adopts a fully anti-corrosion structure and new technology to prevent stress cracking of the cable body, and is equipped with an anchoring system with reliable anchoring performance under low stress conditions;

the cable body and anchor can be assembled on site separately, and the cable body length provided is not strictly required, and the cutting length can be sufficient to compensate for possible errors in the structure.

USE

Protection requirements:

The steel strands should be kept clean to prevent dirt or corrosive substances from adhering to the exposed steel strands.
After tensioning, protective grease should be injected for protection.
The surface of the free section cable body must not be damaged. If damaged, it must be repaired in time.
No substances that corrode the cable body should be attached. Pay attention to fire prevention.

SPECIFICATIONS

Anchor size parameter table (unit：mm)

Specification	D1	D2	D3	D4 (inside diameter)	D6(Outer diameter) x δ(wall thickness)	A X A X C	L1	L2	L3	L4	d1
YXGK15-7	Φ150	Φ210	Φ160	Φ175	Φ133 x 4.5	285 x 285 x 30	70	100	300	400	Φ270
YXGK15-12	Φ205	Φ270	Φ220	Φ235	Φ152 x 5	360 x 360 x 40	80	120	330	470	Φ380
YXGK15-19	Φ230	Φ305	Φ245	Φ260	Φ186 x 5	420 x 420 x 50	100	130	350	500	Φ430
YXGK15-22	Φ230	Φ305	Φ245	Φ260	Φ180 x 5	430 x 430 x 55	100	130	400	550	Φ430
YXGK15-27	Φ270	Φ340	Φ285	Φ295	Φ194 x 5	490 x 490 x 60	100	130	450	600	Φ510
YXGK15-31	Φ270	Φ340	Φ285	Φ295	Φ203 x 8	500 x 500 x 75	110	130	500	650	Φ510
YXGK15-37	Φ315	Φ400	Φ330	Φ345	Φ219 x 8	560 x 560 x 75	130	150	500	700	Φ570
YXGK15-55	Φ350	Φ480	Φ370	Φ385	Φ245 x 10	650 x 650 x 80	180	180	600	800	Φ700

PACKAGE

Packaging & Shipping:

1) All the products are packed with seaworthy packing.
2) Customer's special requirement for packing can be satisfied.
3) Air freight; sea freight and truck freight are all available.
